Special Notes For Tyre Pressure Monitoring (TPM)

NOTIFICATION

Wheel electronics

• Wheel electronics unit and valve may have been fitted incorrectly.
• Wheel electronics units may not have been assigned correctly.

  Read and follow the installation instructions for the wheel electronics units.

  1. > 443219 - REMOVING AND INSTALLING WHEEL ELECTRONICS

     Check that the wheel electronics units are assigned correctly.

  2. > Refer to 443200 - Tyre Pressure Monitoring (TPM) system not active after changing wheels

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of wheel electronics

• If the old wheels are still near the vehicle after assembly work (for example changing winter tyres and/or wheels from another vehicle with TPM), these will still be detected by the system. If one or more of these wheels has a minimum pressure of more than 0.5 bar (7 psi) below the required pressure, this can trigger a warning in the instrument cluster. In this case, remove the wheels or adjust the vehicle outside the radio range of these wheels using the PIWIS Tester.
• Before changing a tyre, read out the remaining life span of the wheel electronics unit (battery capacity) using the PIWIS Tester.

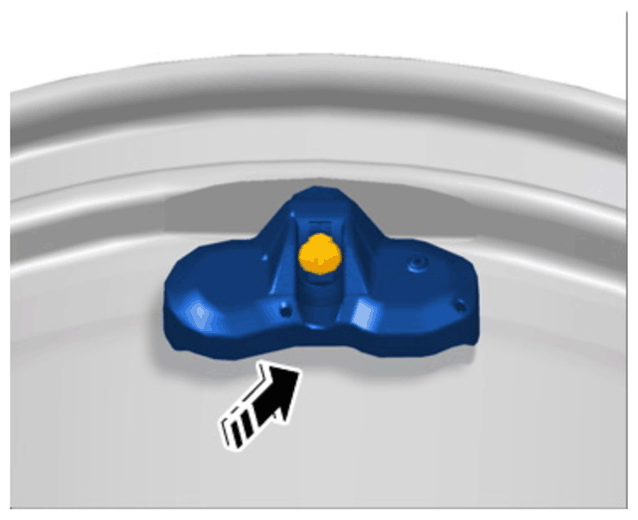

• For vehicles with Tyre Pressure Monitoring (TPM), the valve and wheel electronics -arrow- are - only replaced in exceptional cases. The following points can make replacement necessary.

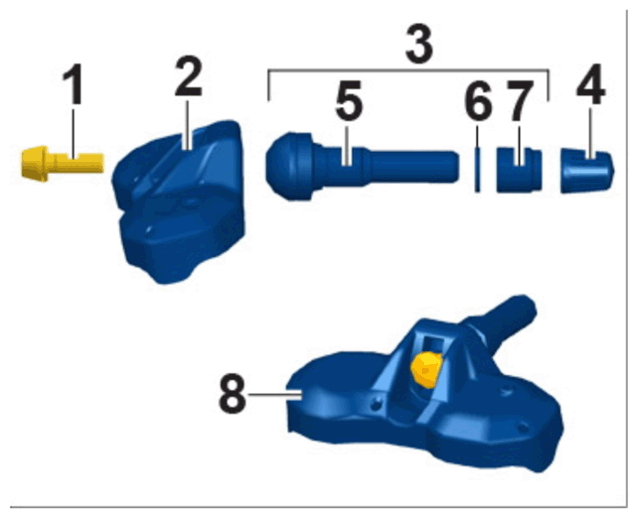

Fig 1: 3rd Generation Wheel Electronics Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3rd generation wheel electronics

1. Self-locking (Torx) screw - replace
2. Wheel electronics
3. Valve, complete (No. 5 to No. 7)
4. Valve cap
5. Valve body with valve insert
6. Double chamfered washer
7. Union nut
8. Wheel electronics assembled

Valve must be replaced complete with screw -1, - 2, 3- if:

• The wheel electronics unit is removed
• The self-locking screw -1-  is loose
• The valve body -5-  is bent
• The union nut -7-  is loose.

The wheel electronics unit -2- must - be replaced if:

• The housing is visibly deformed
• The filter surface (round, porous section on back of wheel electronics) is so badly soiled that it can no longer be cleaned by wiping
• Tyre sealing compound (tyre sealing liquid) has been used
• The service life of the battery is exceeded
• There is a fault inside the wheel electronics unit.
