Information On Wheel Bolts

• Use a suitable commercially available tool (a/f 19 mm). No force or impact tools allowed (for example, impact drivers).
• Wheel bolts must never be reworked.
• Replace damaged wheel bolts.
• Examples of damage: Damage to thread and spherical cap, seizure of screw head and spherical cap ring, binding of wheel screws.
• It must be possible to turn the spherical cap ring on the bolt shank and move it in axial direction.
• Do not grease the wheel bolts and security wheel bolts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

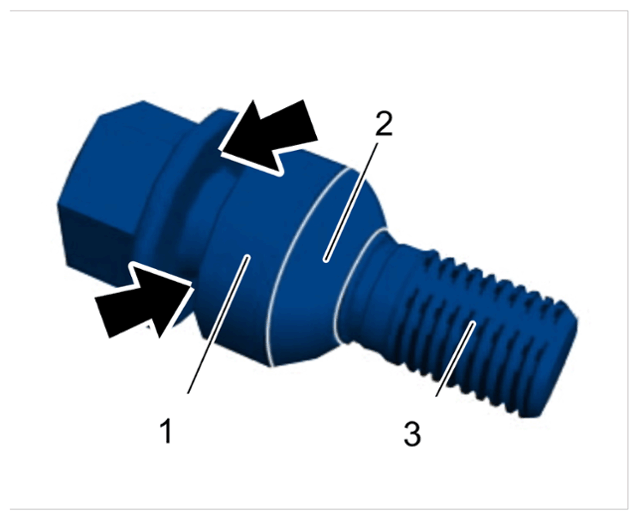

Wheel bolt

1. Cap ring (permanently connected)
2. Spherical cap bearing surface facing the rim → do not grease
3. Thread → do not grease

Arrows  Contact surfaces between bolt head and spherical cap ring → do not grease
