Removing Steering Column Centre

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect steering column -1-  from steering jackshaft -3-  .

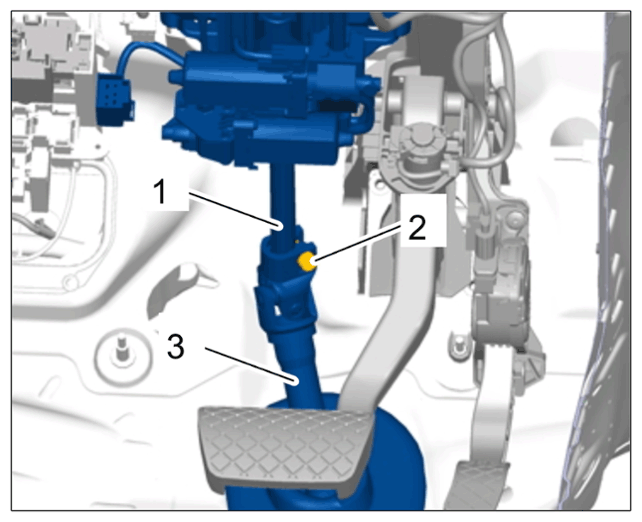

    G15156618Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for steering column on intermediate steering shaft

    1. 1.1 Unscrew screw -2-  .
    2. 1.2 Disconnect steering jackshaft -3-  with universal joint from steering column -1-  .
  2. Release and disconnect electric plug connection -1-  .
    G15156619Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on steering column

  3. Loosen the steering column -2-  at the bottom.

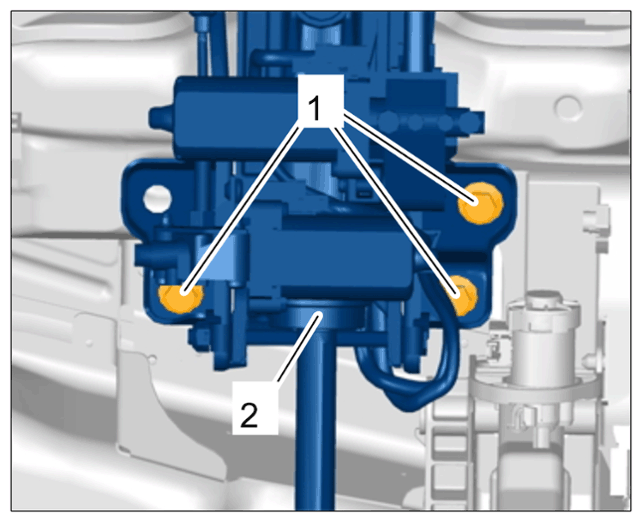

    G15156620Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for steering column, bottom

    1. 3.1 Unscrew screws -1-  .
  4. Loosen the steering column -3-  at the top on the retaining frame and remove it.

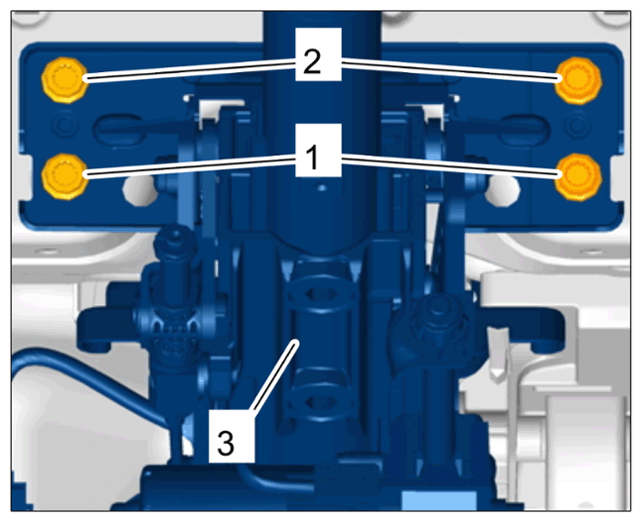

    G15156621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for steering column, top

    1. 4.1 Unscrew screws -1 and 2-  on the steering column.
    2. 4.2 Pull the steering column -3-  back slightly, lower it and guide it out.
