Transfer Box

Information

• For more information, see Porsche Spare Parts Information.

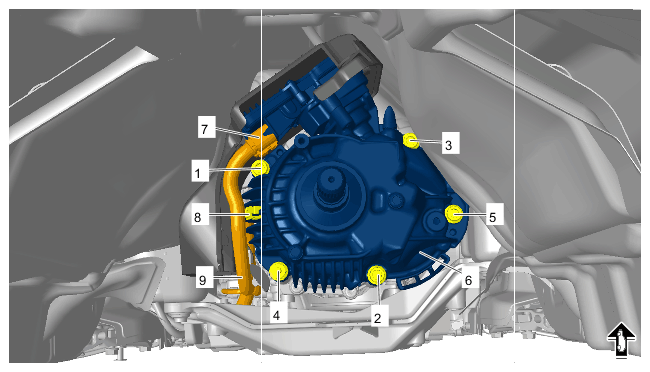

Fig 1: Transfer Box Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transfer box

1-5  Transfer gear to double clutch transmission Screw, M10 x 70  > Initial tightening 50 Nm (37 ftlb.) > Final tightening + 90°

1-5  Transfer gear to double clutch transmission Screw, M10 x 75  > Initial - tightening 40 Nm (30 ftlb.)  > Final tightening + 90°

not pictured  Transfer gear control unit (with integrated servo motor) to transfer gear Screw, M8 x 50  > Tightening - torque 33 Nm (24 ftlb.)
