Overview Of Screw Plugs

Double clutch transmission

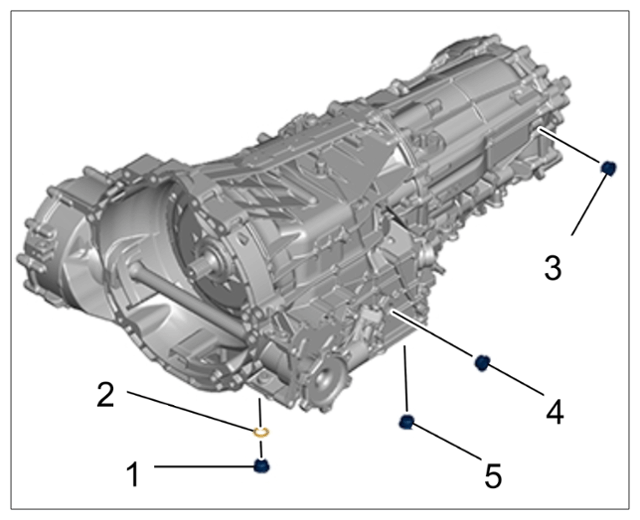

Fig 1: Screw Plugs Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of screw plugs

1. ATF drain plug (oil pan) > Tightening - torque 45 Nm (33 ftlb.)
2. Sealing ring /replace
3. Transmission oil inspection plug (gear wheels )/replace  > Tightening - torque 60 Nm (44 ftlb.)
4. ATF inspection and ATF filler screw/replace  > Tightening - torque 60 Nm (44 ftlb.)
5. Transmission oil drain plug (gear wheels)/Replace  > Tightening - torque 60 Nm (44 ftlb.)

Transfer box (VTG)

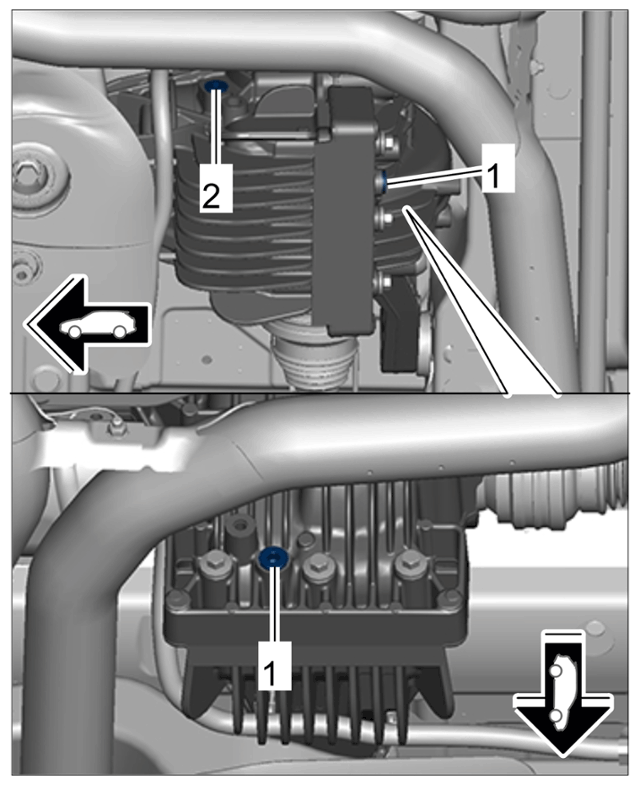

Fig 2: Drain Plug And Inspection Plug Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drain plug and inspection plug

1. Inspection and filler plug > Tightening - torque 20 Nm (15 ftlb.)
2. Drain plug > Tightening - torque 20 Nm (15 ftlb.)

Rear axle differential

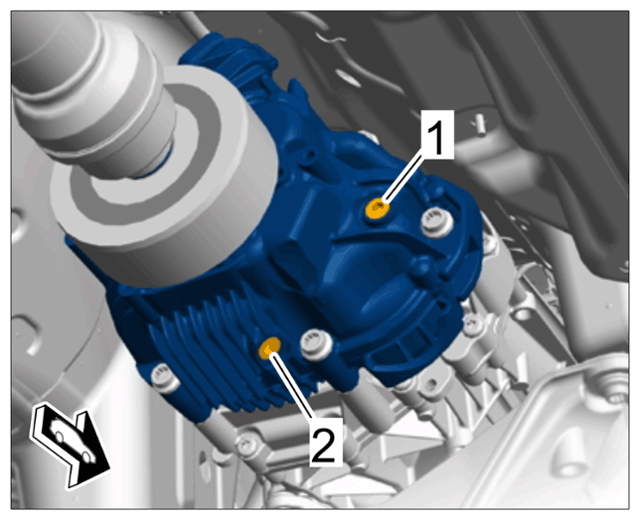

Fig 3: Rear Final Drive Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear final drive

1. Oil drain plug on rear final drive > Tightening - torque 35 Nm (26 ftlb.)
2. Inspection and filler plug on rear final drive > Tightening - torque 35 Nm (26 ftlb.)
