Atf Lines

Connection piece for ATF supply and return lines to transmission > Tightening - torque 20 Nm (15 ftlb.)

ATF lines

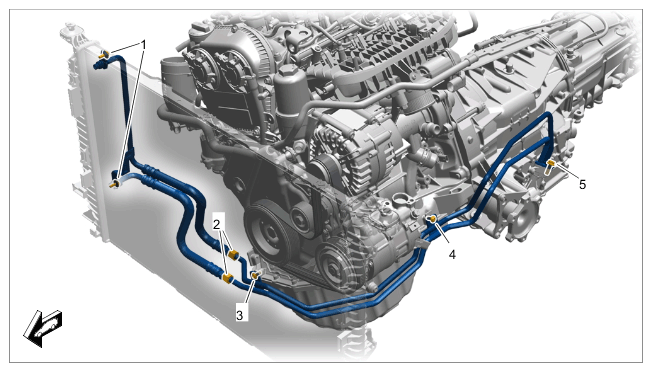

Fig 1: ATF Lines Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF lines

1. Screws securing ATF lines to radiator > Tightening - torque 5 Nm (3.5 ftlb.)
2. Union nuts securing connection point for ATF lines > Tightening - torque 29 Nm (21 ftlb.)
3. Screw > Tightening - torque 8 Nm (6.5 ftlb.)
4. Screw > Tightening - torque 8 Nm (6.5 ftlb.)
5. Screw

Connection piece for ATF supply and return lines to transmission > Tightening - torque 20 Nm (15 ftlb.)

ATF lines

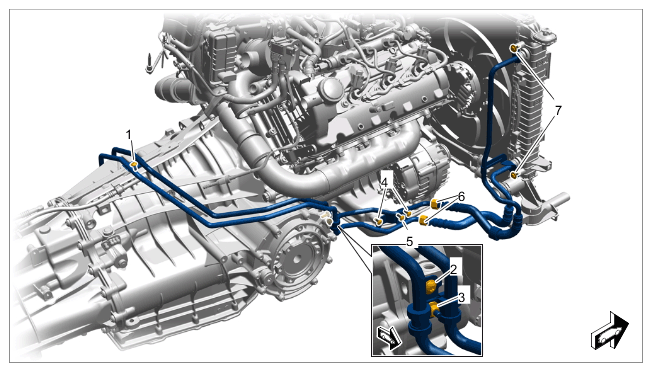

Fig 1: ATF Lines Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF lines

1. Screw > Tightening - torque 8 Nm (6 ftlb.)
2. Screw securing holder to transmission > Tightening - torque 8 Nm (6 ftlb.)
3. Nut > Tightening - torque 8 Nm (6 ftlb.)
4. Screws securing holder to oil pan > Tightening - torque 8 Nm (6 ftlb.)
5. Screw > Tightening - torque 8 Nm (6 ftlb.)
6. Union nuts securing connection point for ATF lines > Tightening - torque 29 Nm (21 ftlb.)
7. Screws securing ATF lines to radiator > Tightening - torque 5 Nm (3.5 ftlb.)
