Heat Shield

WARNING: This page is about a different variant/trim than selected.

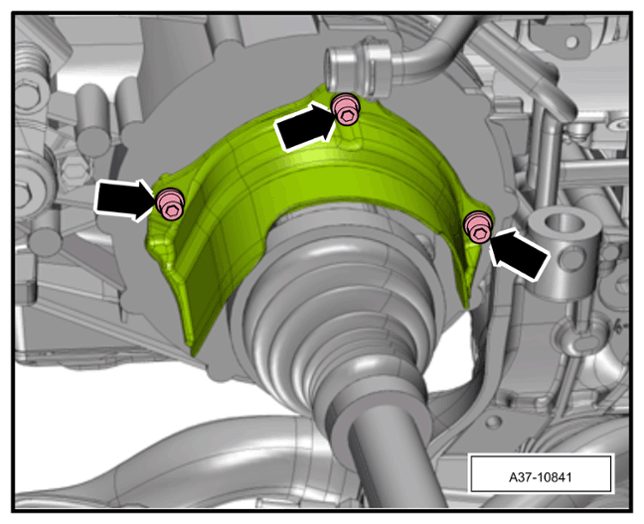

G15153516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for drive shaft

Arrows  Screws > Tightening - torque 23 Nm (17 ftlb.)
