Double Clutch Transmission On Engine

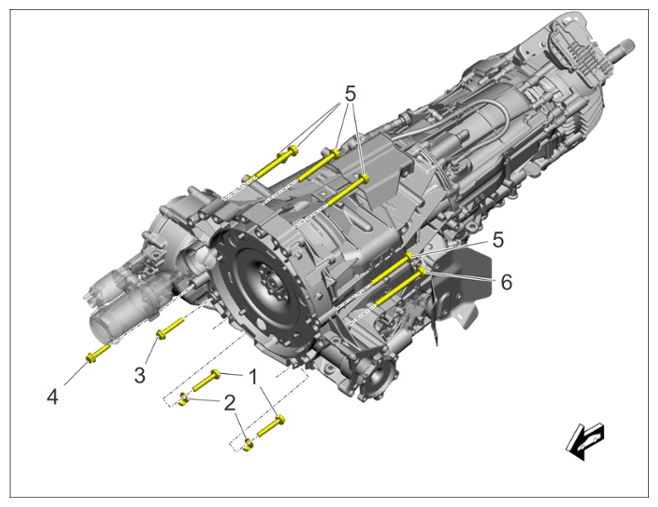

Fig 1: Double Clutch Transmission To V6 Engine Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Double clutch transmission to V6 engine

1. Screw, M10 x 60/replace  > Initial - tightening 15 Nm (11 ftlb.)  > Final tightening + 105°
2. Twist lock
3. Screw, M10 x 50/replace  > Initial - tightening 15 Nm (11 ftlb.)  > Final tightening + 105°
4. Screw for starter, M10 x 50, 10.9 > Tightening - torque 65 Nm (48 ftlb.)
5. Screw, M12 x 100/replace  > Initial - tightening 30 Nm (22 ftlb.)  > Final tightening + 105°
6. Screw, M12 x 125/replace  > Initial - tightening 30 Nm (22 ftlb.)  > Final tightening + 105°
