Transmission Bracket

WARNING: This page is about a different variant/trim than selected.

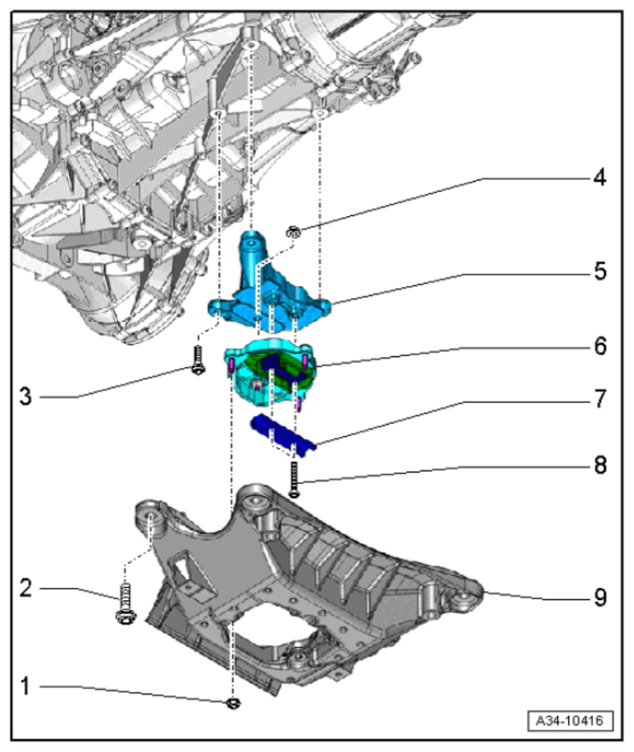

Fig 1: Transmission Bracket Component Location With Torque Specification
G15153513Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission bracket

  1. Nut > Tightening - torque 20 Nm (15 ftlb.)
  2. Screw > Tightening - torque 70 Nm (52 ftlb.)
  3. Screw > Tightening - torque 40 Nm (30 ftlb.)
  4. Nut > Tightening - torque 20 Nm (15 ftlb.)
  5. Transmission bracket
  6. Transmission mount
  7. Lower lock for transmission mount
  8. Screw/replace  > Tightening - torque 20 Nm (15 ftlb.)  > Final tightening + 90°
  9. Transmission support
