Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Rear axle housing, front to body | M14 x 1.5 x 135 thread/always replace screws following removal | Initial tightening | 115 Nm | ||
| Rear axle housing, front to body | M14 x 1.5 x 135 thread/always replace screws following removal | Final tightening | + 90° | ||
| Rear axle housing, rear to body | M12 x 1.5 x 145 thread/always replace screws following removal | Initial tightening | 115 Nm | ||
| Rear axle housing, rear to body | M12 x 1.5 x 145 thread/always replace screws following removal | Final tightening | + 90° | ||
| Wheel bearing to wheel bearing housing | M12 x 1.5 x 45 thread/observe installation sequence!/always use new screws or bolts following removal | Initial tightening | 80 Nm (59 ftlb.) | ||
| Wheel bearing to wheel bearing housing | M12 x 1.5 x 45 thread/observe installation sequence!/always use new screws or bolts following removal | Final tightening | + 90° | ||
| Speed sensor to wheel bearing housing | M6 x 16 thread | Tightening torque | 8 Nm (6 ftlb.) | ||
| Brake calliper to wheel bearing housing | M12 thread/always use new screws or bolts following removal | Initial tightening | 100 Nm (74 ftlb.) | ||
| Brake calliper to wheel bearing housing | M12 thread/always use new screws or bolts following removal | Tightening torque | + 90° | ||
| Brake disc to wheel hub | M6 x 16 thread | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| Brake cover plate to wheel bearing housing | M6 x 14 thread | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| Spring strut to lower trailing arm | M12 thread/always use new screws or bolts and nuts following removal | Initial tightening | 90 Nm (67 ftlb.) | ||
| Spring strut to lower trailing arm | M12 thread/always use new screws or bolts and nuts following removal | Final tightening | + 90° | ||
| Holder to wheel bearing housing | M6 x 16 thread | Tightening torque | 10 Nm | ||
| Drive shaft to wheel hub | Step 1 (wheels suspended in midair, operate brakes while tightening)/M1 6 x 72 thread/always use new screws or bolts following removal | Initial tightening | 200 Nm (148 ftlb.) | ||
| Drive shaft to wheel hub | Step 2 (wheels on the ground)/M16 x 72 thread/always use new screws or bolts following removal | Final tightening | 180° | ||
| Heat shield for drive shaft to rear axle | M8 x 22 thread | Tightening torque | 20 Nm (15 ftlb.) | ||
| Air line to air spring | Tightening torque | 3 Nm (2 ftlb.) | |||
| Bellows to profile shaft | Small clamp - clamp tensioner VAG 1682A | Tightening torque | 15 Nm (11 ftlb.) | ||
| Bellows on joint | Large clamp - clamp tensioner VAG 1682A | Tightening torque | 21 Nm (16 ftlb.) | ||
| Drive shaft | Positioning of bellows | Dimension -X- | + 90 mm | + 3 mm | |
|

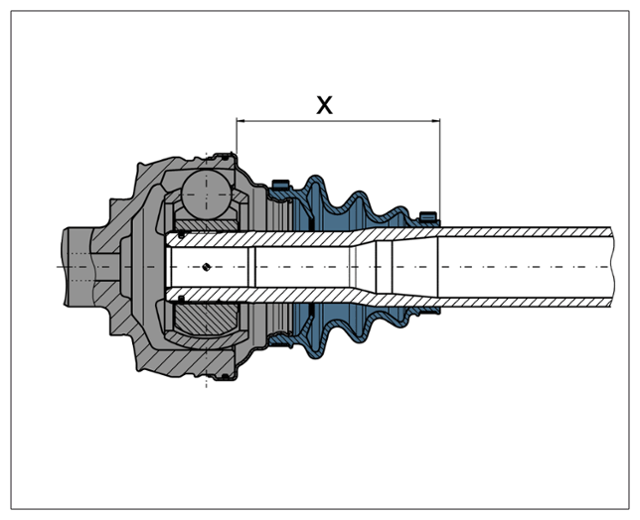

Bellows positioning Dimension -X- |
|||||
| Lower trailing arm to rear axle housing | M12 thread/always use new screws or bolts and nuts following removal | Initial tightening | 70 Nm | ||
| Lower trailing arm to rear axle housing | M12 thread/always use new screws or bolts and nuts following removal | Final tightening | + 180° | ||
| Lower trailing arm to wheel bearing housing | M14 thread/always use new screws or bolts and nuts following removal | Initial tightening | 120 Nm | ||
| Lower trailing arm to wheel bearing housing | M14 thread/always use new screws or bolts and nuts following removal | Final tightening | + 360° | ||
| Level sensor to lower trailing arm | M6 x 16 thread | Tightening torque | 9 Nm | ||
| Upper control arm to rear axle housing | M12 thread/always use new screws or bolts and nuts following removal | Initial tightening | 70 Nm | ||
| Upper control arm to rear axle housing | M12 thread/always use new screws or bolts and nuts following removal | Final tightening | + 180° | ||
| Upper control arm to wheel bearing housing | M12 thread | Tightening torque | 95 Nm | ||
| Tie rod to rear axle housing | M12 thread/always use new screws or bolts and nuts following removal | Tightening torque | 95 Nm | ||
| Tie rod to wheel bearing housing | M12 x 1.5 x 80.8 thread/always use new screws or bolts following removal | Initial tightening | 90 Nm | ||
| Tie rod to wheel bearing housing | M12 x 1.5 x 80.8 thread/always use new screws or bolts following removal | Final tightening | + 90° | ||
| Connecting link to anti-roll bar | M10 x 65 thread/always use new screws and nuts following removal | Initial tightening | 50 Nm (37 ftlb.) | ||
| Connecting link to anti-roll bar | M10 x 65 thread/always use new screws and nuts following removal | Final tightening | + 90° | ||
| Connecting link to lower trailing arm | M10 x 65 thread/always use new screws or bolts following removal | Initial tightening | 50 Nm (37 ftlb.) | ||
| Connecting link to lower trailing arm | M10 x 65 thread/always use new screws or bolts following removal | Final tightening | + 90° | ||
| Anti-roll bar clamp to rear axle carrier | M8 x 65 thread/always use new screws following removal | Initial tightening | 20 Nm (15 ftlb.) | ||
| Anti-roll bar clamp to rear axle carrier | M8 x 65 thread/always use new screws following removal | Final tightening | + 180° | ||
| Supporting mount to piston rod (conventional) | M10 thread | Tightening torque | 35 Nm | ||
| Supporting mount to piston rod (PASM) | M12 thread | Tightening torque | 35 Nm | ||
| Shock absorber to wheel bearing housing | M14 x 1.5 x 90 thread/always use new screw or bolt following removal | Initial tightening | 150 Nm | ||
| Shock absorber to wheel bearing housing | M14 x 1.5 x 90 thread/always use new screw or bolt following removal | Final tightening | + 180° | ||
| Shock absorber to body | AM10 x 35 thread/always use new screws or bolts following removal | Initial tightening | 50 Nm | ||
| Shock absorber to body | AM10 x 35 thread/always use new screws or bolts following removal | Final tightening | + 90° | ||
