Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Brake calliper (17-inch - black) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 48/always replace screws/bolts following removal	Tightening torque	196 Nm (145 ftlb.)

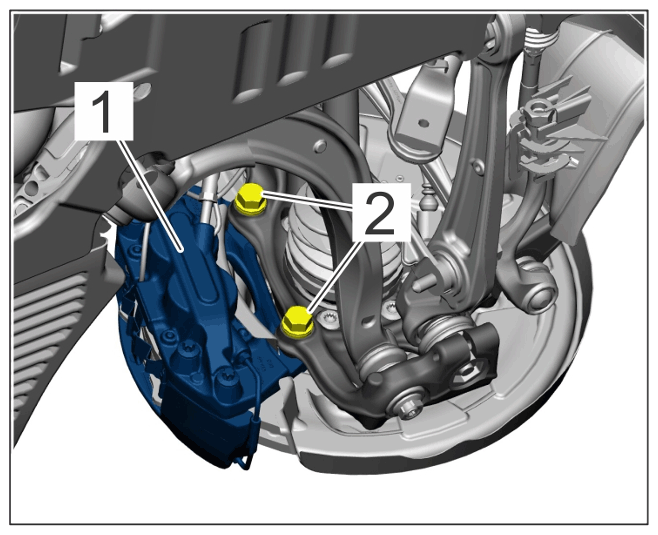

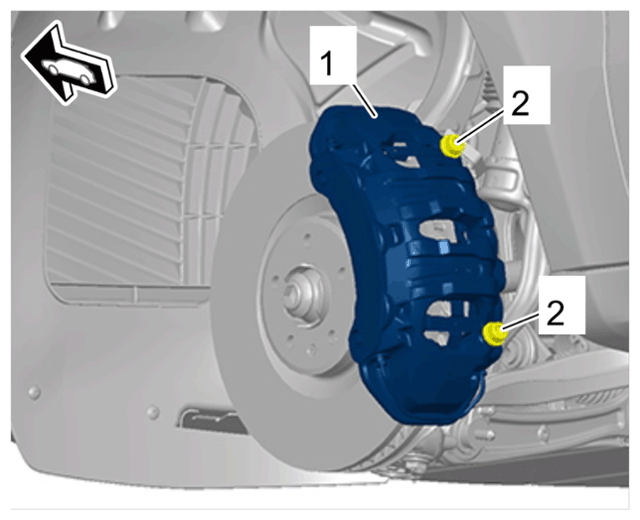

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - axial bolts
Brake calliper (17-inch - black/North America) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 115/always replace bolts following removal	Initial tightening	30 Nm (22 ftlb.)

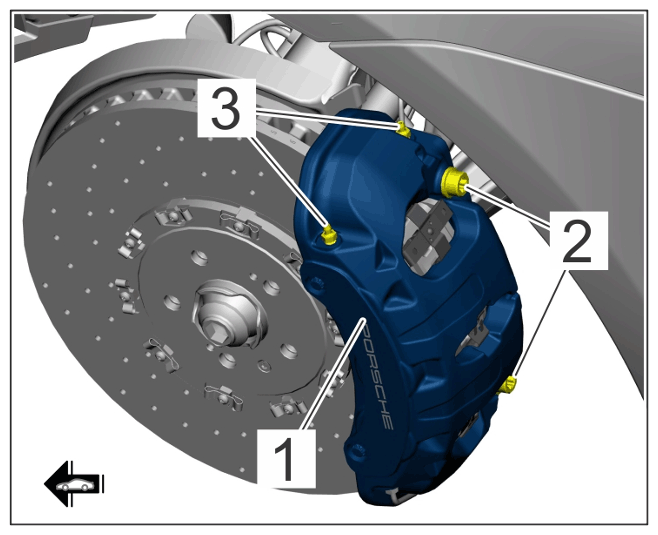

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (17-inch - black/North America) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 115/always replace bolts following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts (shown as an example)
Brake calliper (18-inch - grey/red) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 115/always replace screws/bolts following removal	Initial tightening	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (18-inch - grey/red) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 115/always replace screws/bolts following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (19-inch PCCB/PSCB - yellow/white) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 135/always replace screws/bolts following removal	Initial tightening	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (19-inch PCCB/PSCB - yellow/white) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 135/always replace screws/bolts following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake hose holder to wheel bearing housing and body	Item 2: Screw, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

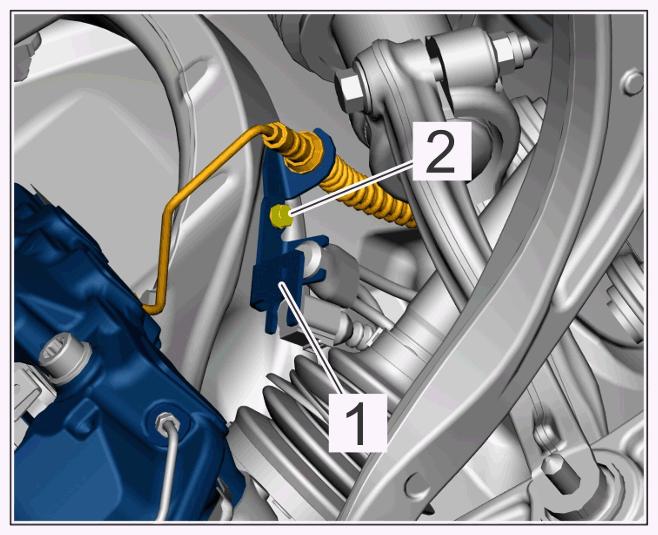

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake hose holder to wheel bearing housing
Brake line to brake calliper (grey cast iron)	Item 3: Cap screw - do not bend line	Tightening torque	20 Nm (15 ftlb.)

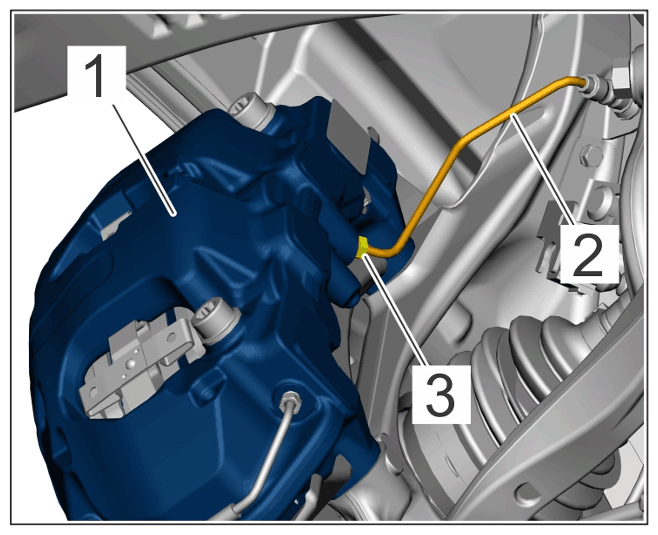

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line on brake calliper
Brake hose to brake calliper (PCCB)	Threaded connection - do not twist brake hose	Tightening torque	14 Nm (10.5 ftlb.)
Connection between brake hose and brake line (on holder)	Item 1 and 2: Threaded connection - do not twist brake hose	Tightening torque	14 Nm (10.5 ftlb.)

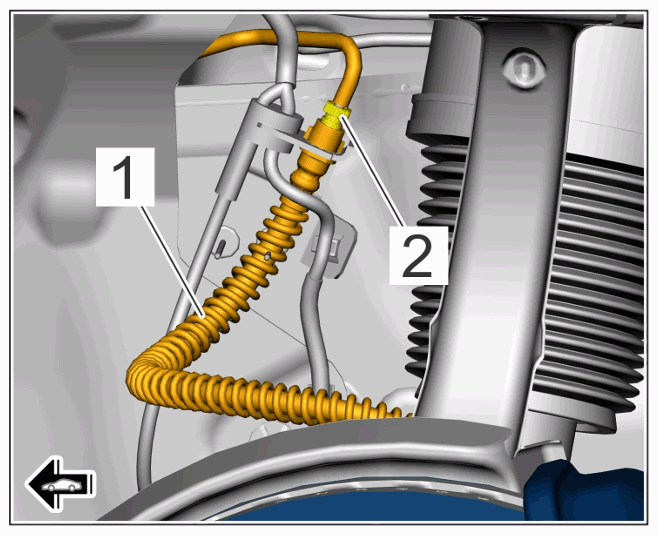

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake hose to brake line
Brake cover panel to wheel bearing housing (17-inch)	Item 2: Screw, M6 x 14	Tightening torque	10 Nm (7.5 ftlb.)

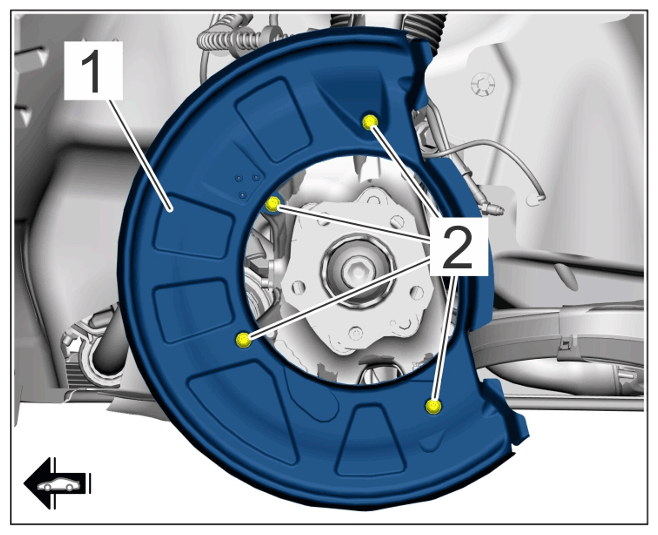

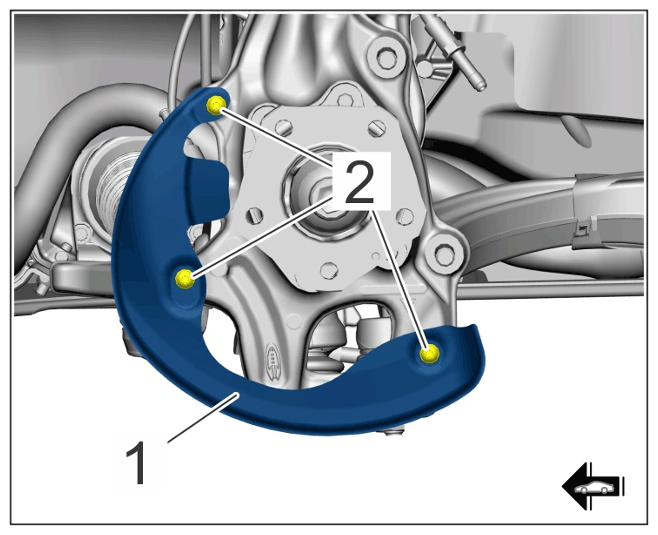

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake cover panel, 17-inch
Brake cover panel to wheel bearing housing	Item 2: Screw, M6 x 14	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake cover panel, large
Brake disc to wheel hub	Item 2: Screw, M6 x 16	Tightening torque	10 Nm (7.5 ftlb.)

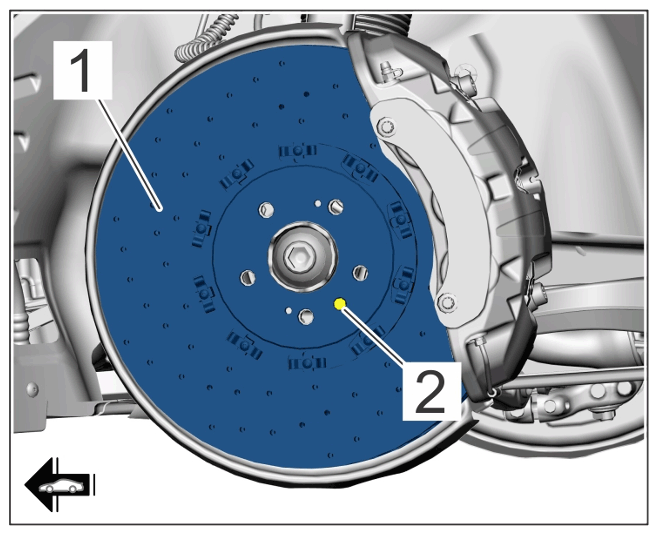

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc to wheel hub
Brake hose to brake line in wheel housing	Threaded connection	Tightening torque	14 Nm (10.5 ftlb.)
Brake calliper carrier to wheel bearing housing (all variants)	Item 2: M12/al ways use new screws or bolts following removal	Initial tightening	100 Nm (74 ftlb.)

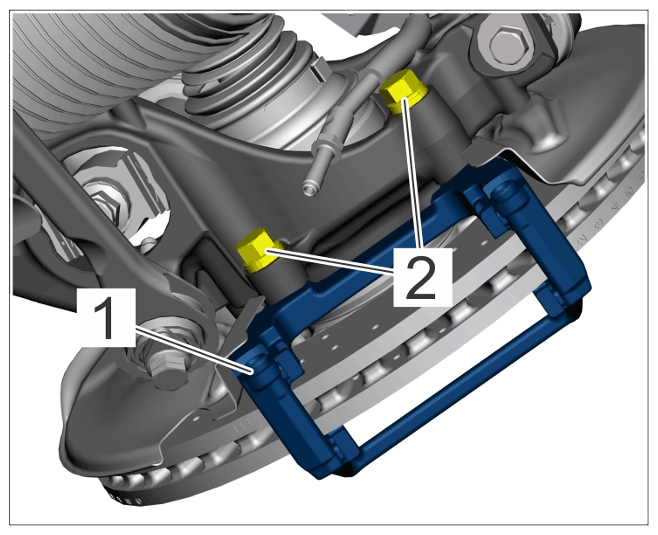

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper carrier to wheel bearing housing
Brake calliper carrier to wheel bearing housing (all variants)	Item 2: M12/al ways use new screws or bolts following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper carrier to wheel bearing housing
Brake calliper to brake carrier (all variants)	M12/al ways use new screws or bolts following removal	Tightening torque	35 Nm (26 ftlb.)
Brake hose bracket to wheel bearing housing	M6 x 16 screw	Tightening torque	9 Nm (6.5 ftlb.)
Brake hose to brake calliper	Do not twist brake hose	Tightening torque	20 Nm (15 ftlb.)
Brake cover panel to wheel bearing housing	M6 x 14 screw	Tightening torque	10 Nm (7.5 ftlb.)
Brake disc to wheel hub	M6 x 16 screw	Tightening torque	10 Nm (7.5 ftlb.)
Electric parking brake - actuator to brake calliper	Always use new screws or bolts following removal	Tightening torque	11 Nm (8 ftlb.)
Brake hose to brake line in wheel housing	Threaded connection-counter while tightening	Tightening torque	14 Nm (10.5 ftlb.)
Screws for actuating the electric parking brake	Item 3: Lens-head screws, 4.2 x 16	Tightening torque	1.5 Nm (1.1 ftlb.)
