Removing Air Bellows

NOTIFICATION

Air springs can become kinked/fall out

• Risk of damage to air springs
  1. → Deactivate the levelling system before raising the vehicle.
  2. → Check the bellows before lowering the vehicle.

Information

Recommendation for workshops replacing shock absorbers for workshops:

• Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
• If the mileage is > 30, 000 km or the components are more than 3 years old, we recommend replacing them in pairs.

Information

To prevent damage to the air suspension bellows, pay particular attention to the following points when handling air suspension bellows:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

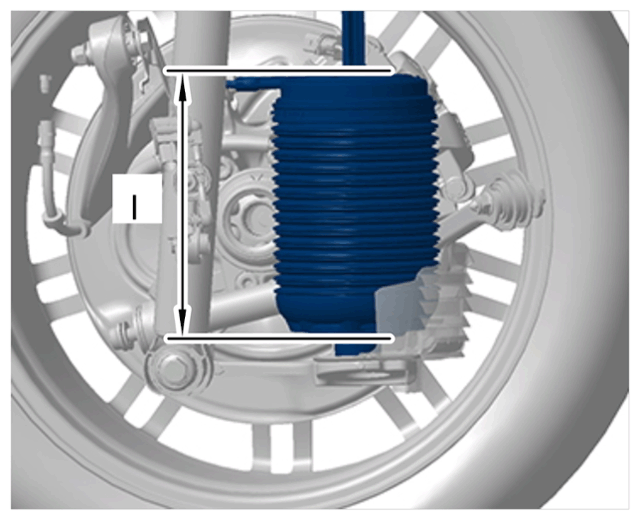

Length l of air suspension bellows

• The air spring bellows must never be bled completely. This applies to both installed and removed air spring bellows.
• Air spring bellows must only be bled as described under

  > 430117 - BLEEDING AND FILLING THE LEVELLING SYSTEM

• An air suspension bellows is depressurised if the pressure is less than 1.5 bar.
• The air suspension bellows must not be pulled apart.
• The air suspension bellows must not be bent.
• The air suspension bellows must not be carried at the insertion pin.
• The air suspension bellows must not be squeezed together to a length l less than 220 mm.
• The vehicle must never be lowered when the levelling system is empty.
• Air suspension bellows must be installed in the vehicle within one year.

1. Lift up wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

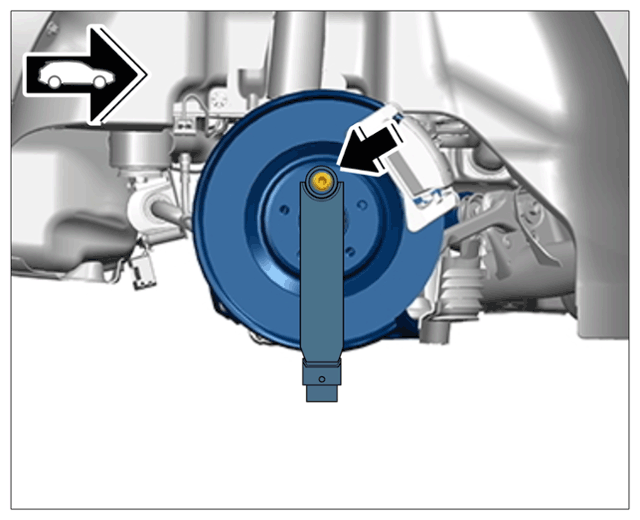

   Support T10149 on wheel hub

   1. 1.1 Fit > T10149 - support  on > VAS 6931 - engine and gearbox jack  and secure it at the very top bore of the wheel hub -Arrow-  using a wheel bolt. > Support T10149 on wheel hub
   2. 1.2 Raise wheel bearing housing with > T10149 - mounting  and > VAS 6931 - gearbox and unit lifter  at the wheel hub until a length -Dimension A-  of the air bellows between the measuring edges of less than 290 mm  is reached. However, the length must not be less than 220 mm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Measuring length of air bellows

   Information

   The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air line

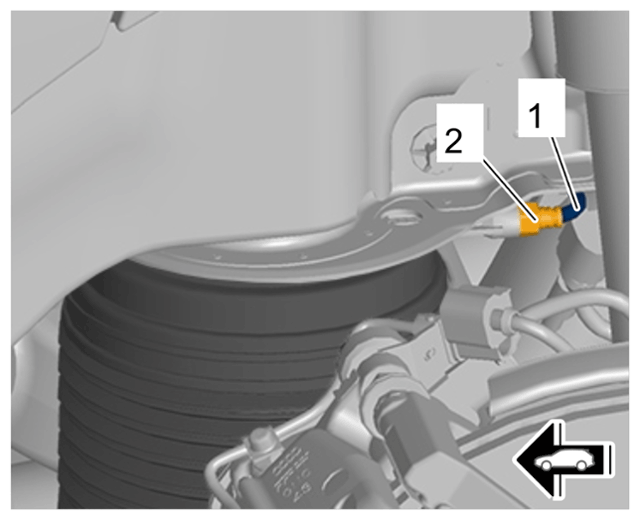

2. Disconnect air line for air bellows -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air line for air bellows

   1. 2.1 Unscrew union nut on air line -2-  .
   2. 2.2 Disconnect air line -1-  .
   3. 2.3 Close off line connections to prevent dirt from getting in using a suitable stopper.
3. Lower > VAS 6931 - engine and gearbox jack  .

   Information

   To prevent damage to the air suspension bellows, pay particular attention to the following points when handling air suspension bellows:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Length l of air suspension bellows

   • The air spring bellows must never be bled completely. This applies to both installed and removed air spring bellows.
   • Air spring bellows must only be bled as described under

     > 430117 - BLEEDING AND FILLING THE LEVELLING SYSTEM

   • An air suspension bellows is depressurised if the pressure is less than 1.5 bar.
   • The air suspension bellows must not be pulled apart.
   • The air suspension bellows must not be bent.
   • The air suspension bellows must not be carried at the insertion pin.
   • The air suspension bellows must not be squeezed together to a length l less than 220 mm.
   • The vehicle must never be lowered when the levelling system is empty.
   • Air suspension bellows must be installed in the vehicle within one year.

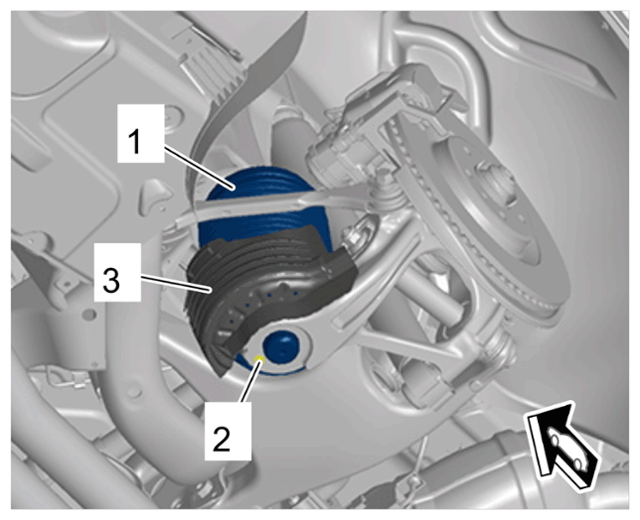

4. Remove air bellows -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air suspension bellows

   1. 4.1 Carefully press the pin -2-  on the mounting for the air bellows up out of the bore.
   2. 4.2 Remove stone guard -3-  .
   3. 4.3 Guide out air bellows -1-  .

      Air bellows must not be bent or twisted!
