Installing Sealing Ring For Output Shaft Sealing Ring
WARNING: This page is about a different variant/trim than selected.

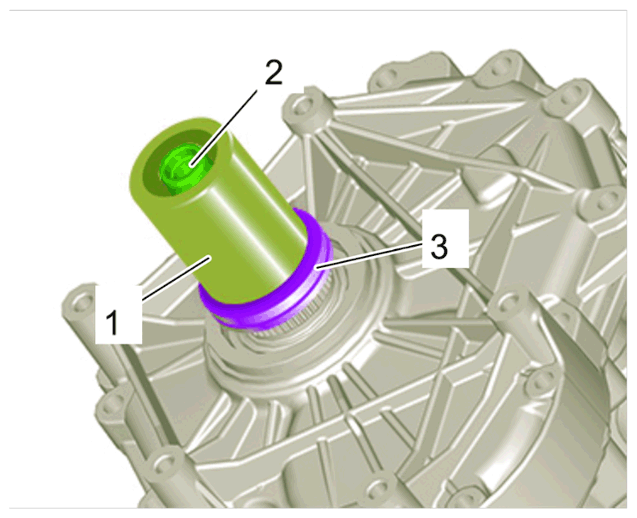

- Fit > 9884 - sleeve-1 - on the output shaft -2-
and push sealing ring -3-
onto the sleeve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sleeve 9884 with sealing ring
- Fit sealing ring.
- 2.1
Push > 9884/1 - pressure piece on to > 9884 - sleeve and output shaft.
- 2.2

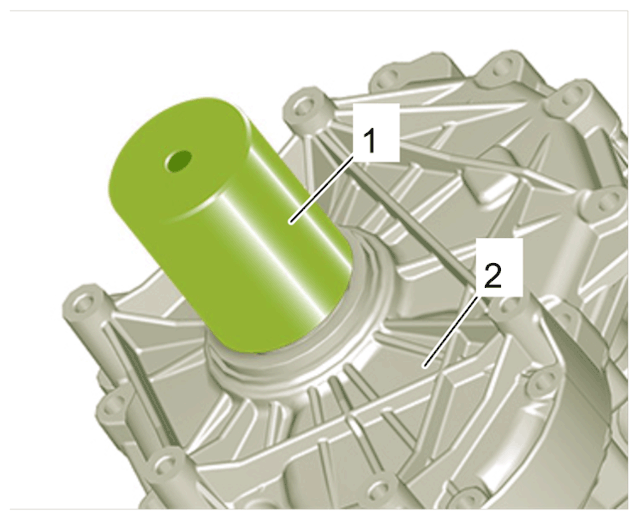

Using > 9884/
1 - pressure piece -1-
. press sealing ring up to anchor block -1-
on cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pressure piece 9884/1
- Remove pressure piece and sleeve.
