Removing Sealing Ring For Double Clutch

WARNING: This page is about a different variant/trim than selected.
  1. Removing sealing ring for double clutch -1-.

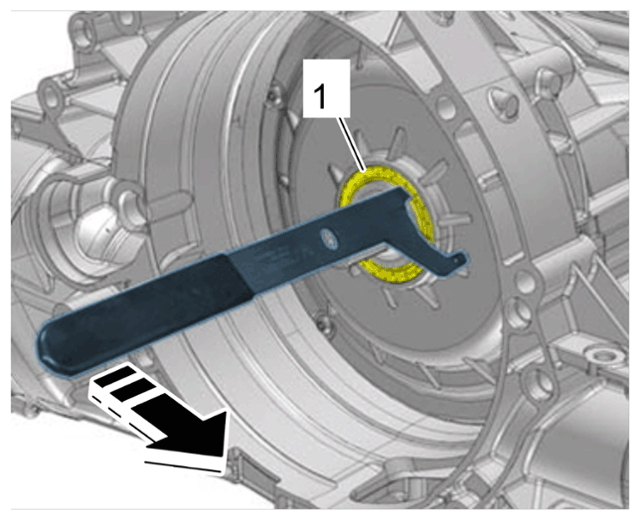

    G15153355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring for double clutch

    1. 1.1  Lever off sealing ring for double clutch -1-  using > T20143-extractor hook (-Arrow-
