Removing ATF Cooling Line (Front Section)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Working with ATF
- Possible danger of injury or damage (e.g. swollen hoses, skin irritation, danger of slipping, etc.)
→ Before lines are opened, place a cloth underneath them!
→ Components that come into contact with ATF must be cleaned IMMEDIATELY with water! → Take appropriate protective measures (protective clothing, safety goggles, oil binding material) → Collect emerging ATF!
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down. → Wear personal protective gear.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
→ Protect components from dirt and contamination. → Clean or replace dirty components.

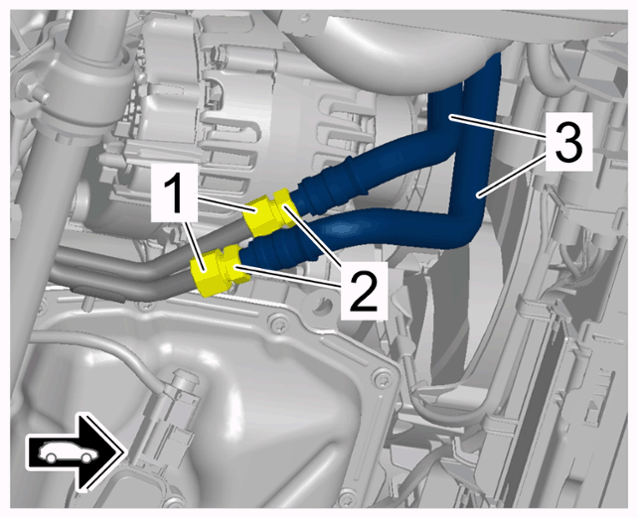

- Disconnect ATF cooling line connection point.
Connection point for ATF cooling line
- 1.1 Unscrew union nuts and counter at the hexagon at the same time.
- 1.2 Pull off front section -3-
- 1.3 Catch escaping ATF and close off line connections using suitable stoppers.

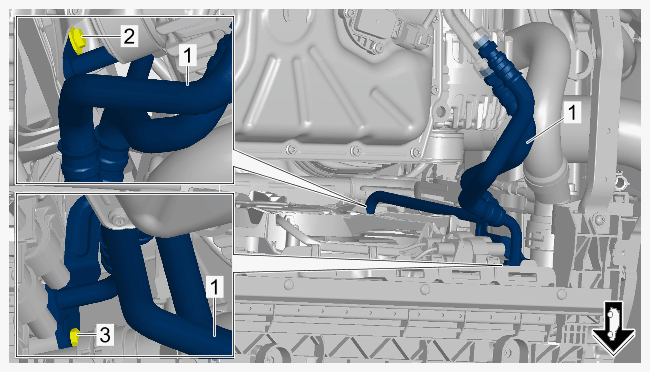

- Remove front section of ATF cooling line -1-
ATF cooling line - front section
- 2.1 Unscrew screws on ATF cooling line -2 and 3- ,
- 2.2 Remove front section of the ATF cooling line -1-
- 2.3 Catch escaping ATF and close off line connections using suitable stoppers.
