Installing ATF Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

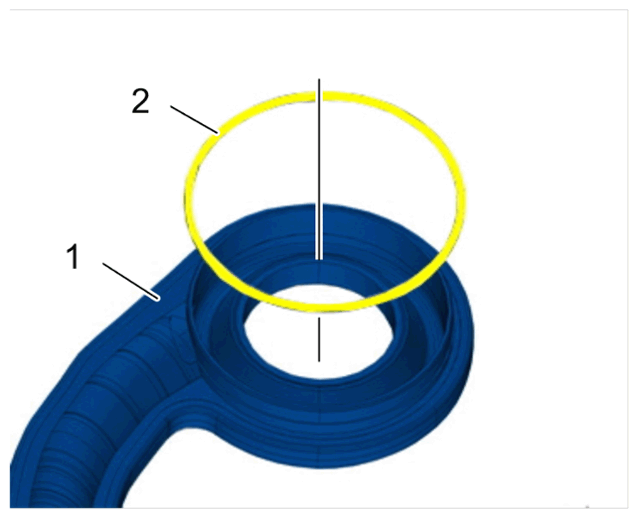

O-ring on sucking jet pump

1. 1.1  Check sealing face on the inside of the large opening on the sucking jet pump for damage and replace the sucking jet pump -1-  if necessary.
2. 1.2  Replace O-ring -2-  on the inside of the large opening on the sucking jet pump -1-  .
3. 1.3  Replace small O-ring at the bottom of the sucking jet pump -1-  and check it is seated correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

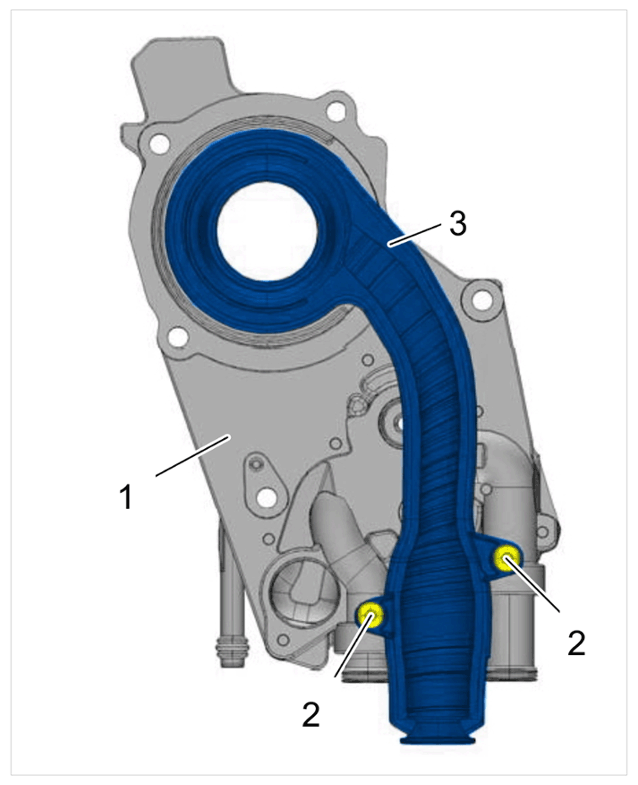

Screws for sucking jet pump

1. 2.1 Slide sucking jet pump -2- and - oil pump Az. onto the drive shaft one after the other.
2. 2.2  Fit the sucking jet pump onto the oil pump -1-  .
3. 2.3  Tighten the screws -2-  .

   > Tightening - torque 4.5 Nm (3.25 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

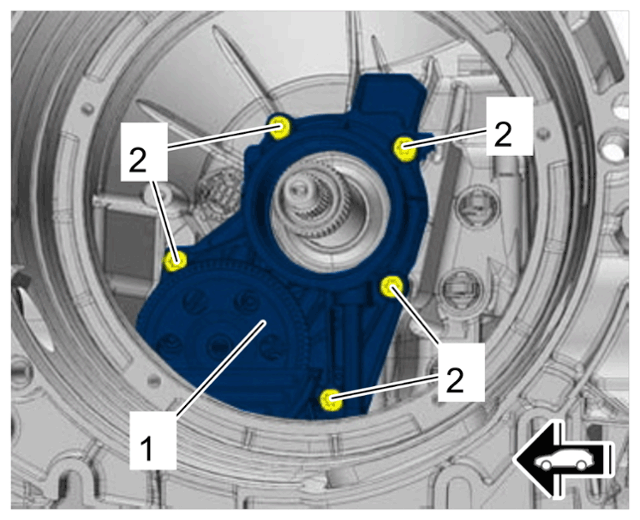

Screws for ATF pump

1. 3.1  Push ATF pump 1  onto the drive shaft as far as it will go.
2. 3.2  Screw in and tighten screws securing the ATF pump 2  .

   > Tightening torque 25 fl 9 ftlb.) Nm
