Removing Drive Shaft Bearing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

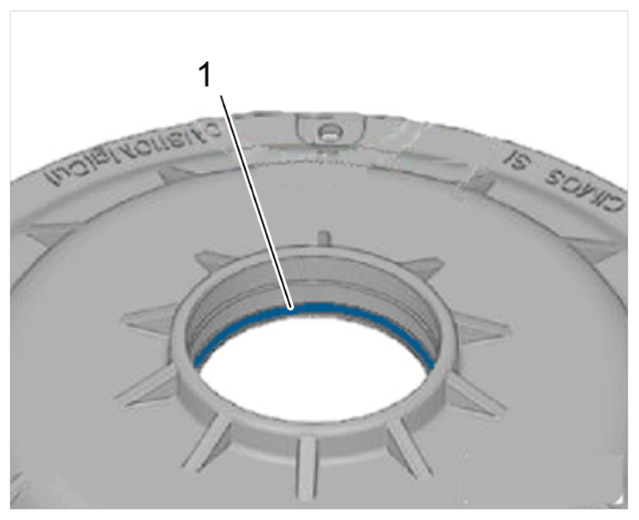

Circlip

1. 1.1  Replace circlip.
   WARNING: Mechanical, hydraulic or pneumatic press

   • Risk of squashing

     → Read specific safety information for the press.

     → Check that the press is working perfectly before use, particularly the safety components.

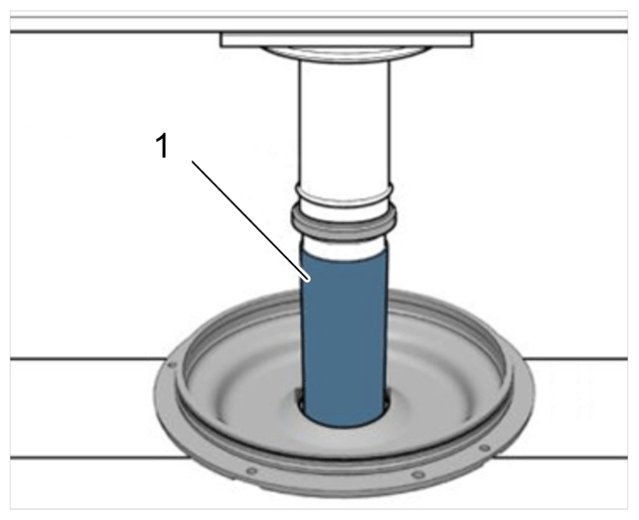

1. 2.1  Press out bearing using > VW415A- tube -1-

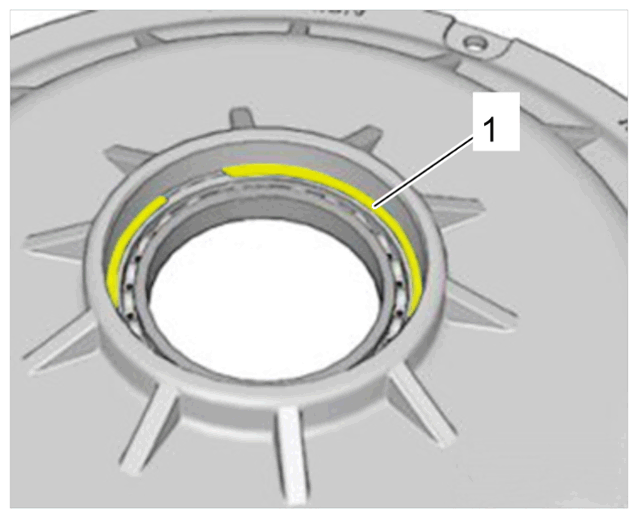

2. 2.2  Replace bearing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tubular piece

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thrust washer

1. 3.1  Replace thrust washer.
