Installing Drive Shaft Bearing

WARNING: This page is about a different variant/trim than selected.

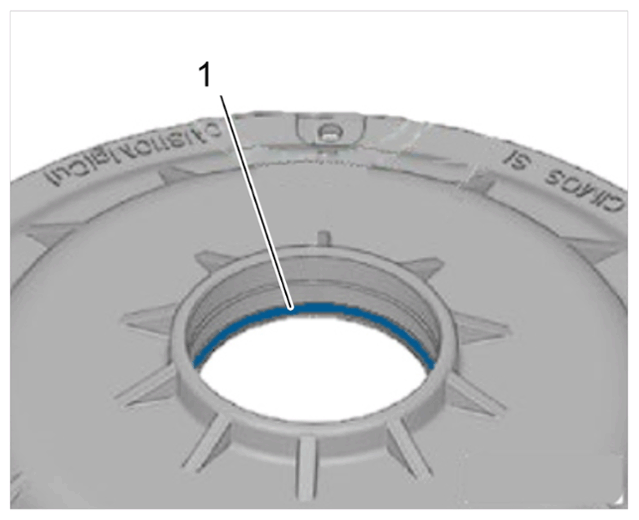

Install new thrust washer -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thrust washer
WARNING:
Mechanical, hydraulic or pneumatic press
- Risk of squashing
  → Read specific safety information for the press.

  → Check that the press is working perfectly before use, particularly the safety components.

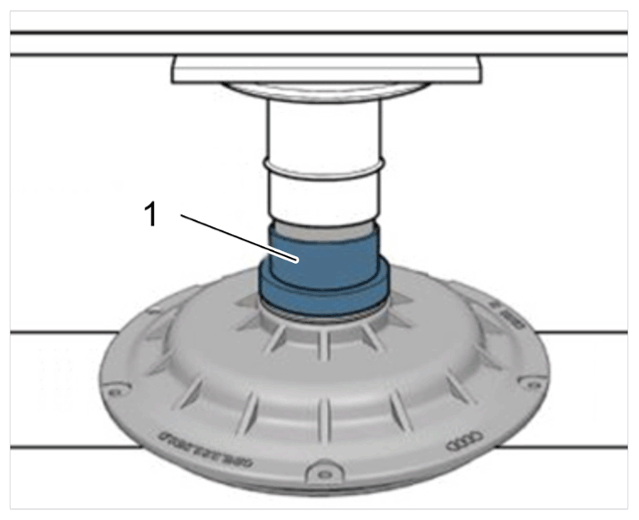

Install new bearing in the double clutch cover.

2.1 Press in bearing using > VW511 -thrust washer -1- as far as it will go.

G15153293

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thrust washer

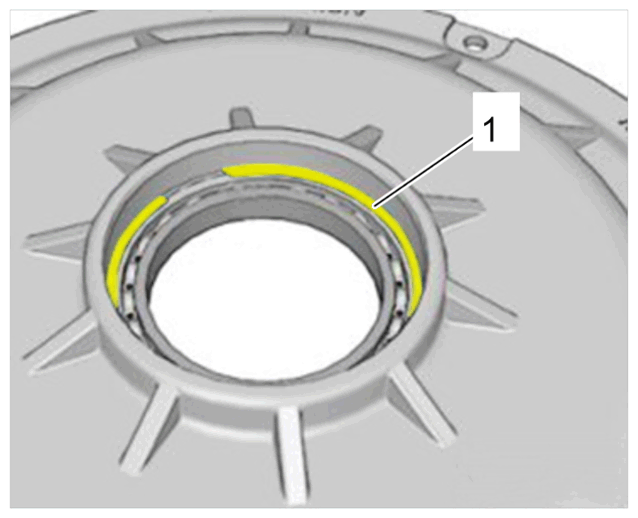

Fit new circlip -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circlip
1. 3.1 Clean the sealing face.
2. 3.2 Insert circlip -1- fully into the groove and check that it is seated correctly
