Removing Double Clutch Transmission

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Only if not performed while removing engine:
Unscrew drive plate screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

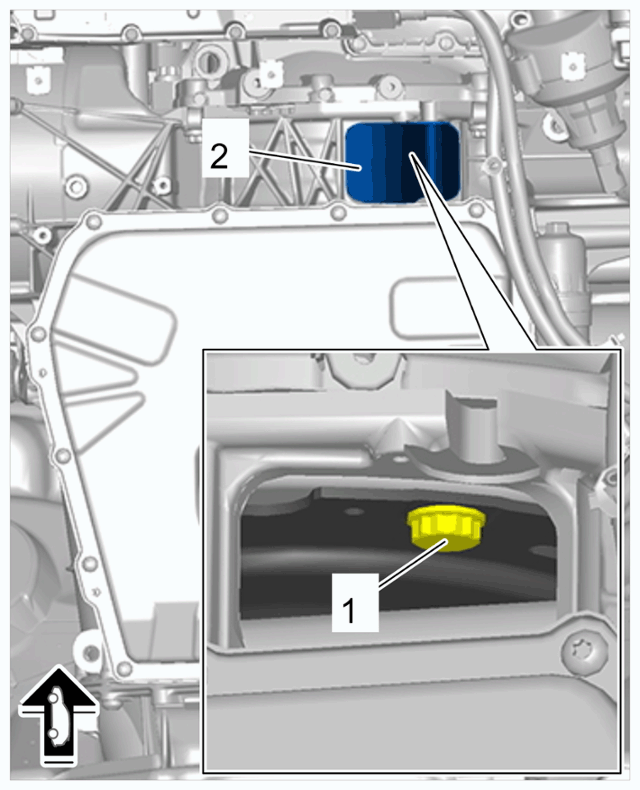

Drive plate screws
1. 1.1 Remove service cover 2 . on double clutch transmission.
2. 1.2 Turn the engine at the crankshaft as far as required in direction of rotation of the engine until one drive plate screw -1- is accessible.
3. 1.3 Unscrew drive plate screw Get a second mechanic to counter at the crankshaft at the same time.
4. 1.4 Repeat this procedure for the other two drive plate screws -1- .
Loosen the starter.
> 276019 - REMOVING AND INSTALLING STARTER (V6 TURBO)
1. 2.1 Unscrew screw.
2. 2.2 Pull the starter away from the double clutch transmission slightly by hand and leave it at this position.
Loosen double clutch transmission.
1. 3.1 Unscrew screws -1 to 5-.

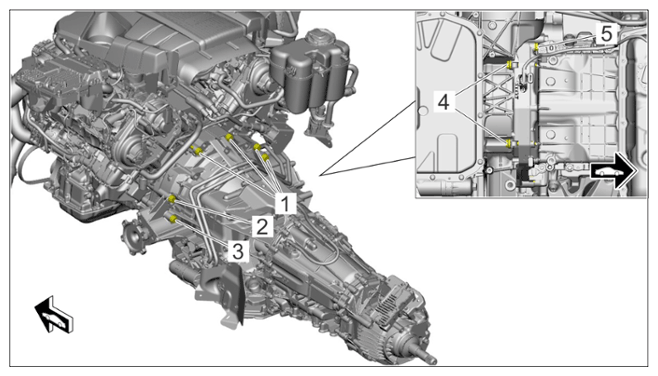

  Fig 1: Double Clutch Transmission Screws Loosening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Flange screws securing engine to transmission
Suspend double clutch transmission using workshop crane and > T40294 - hook and support tool .
1. 4.1 > T40294 - Hook and support tool must then be aligned. Insert suitable hooks if necessary.
Guide double clutch transmission away from the engine with the help of another person and lift it off on > T40294 - hook and support tool.
