Securing Double Clutch Transmission

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Secure components to prevent them from falling down.

T40294 - Hook and support tool-1 - must be secured to the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

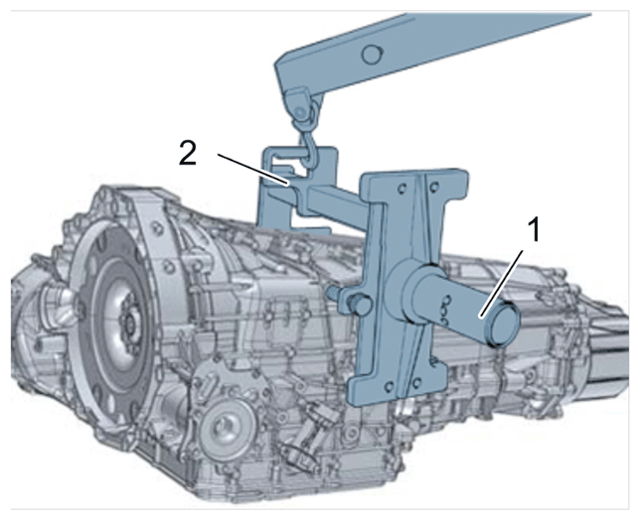

Hook and support tool T40294
1. 1.1 > T40294 - Hook and support tool-1 - must be secured to the > VAS 6100 -workshop crane -2-
2. 1.2 > T40294 - Hook and support tool-1 - must be engaged in the housing bores at the right side of the double clutch transmission and secured using the knurled screw -2- at the left side of the double clutch transmission
> VW309A - Support plate -1- must be screwed to the > T40294 - hook and support tool -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

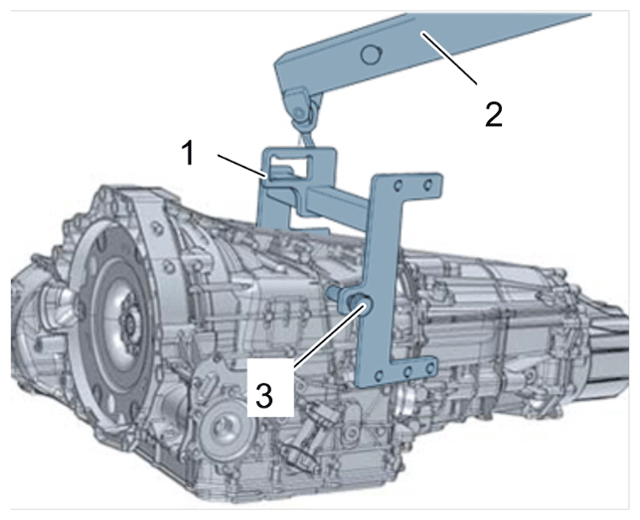

Hook and support tool on double clutch transmission
Use the > VAS 6100 - workshop crane -1- to fit the double clutch transmission into the > VAS 6095A - engine and gearbox bracket -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

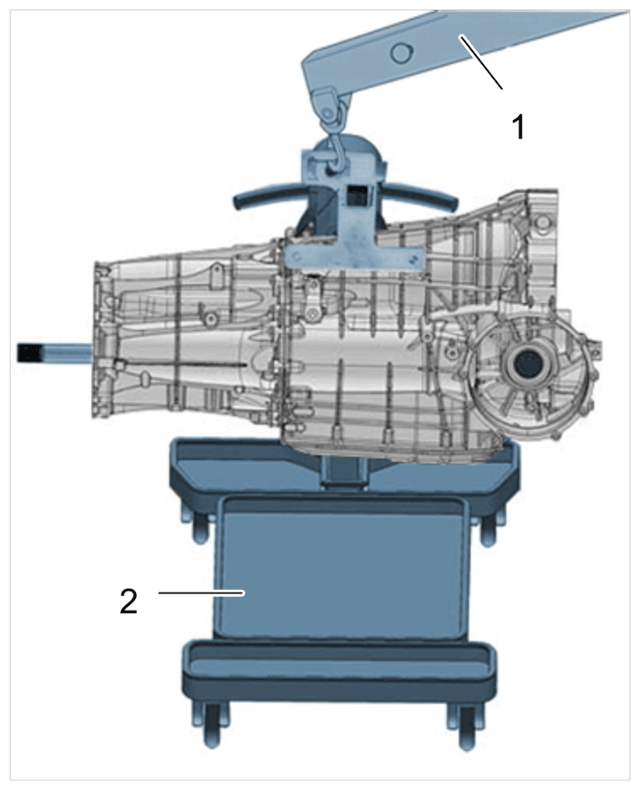

Double clutch transmission on VAS 6095A engine and gearbox bracket
> VAS 6100 - Workshop crane together with > T40294 - hook and support tool must be retrieved from the engine.
