Removing Knock Sensor
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
- Remove knock sensor -1- behind engine support.
- 1.1 Release and disconnect electric plug connection for knock sensor -2- .
- 1.2 Unscrew screw on knock sensor -3- .
- 1.3 Remove knock sensor -1- behind engine support.

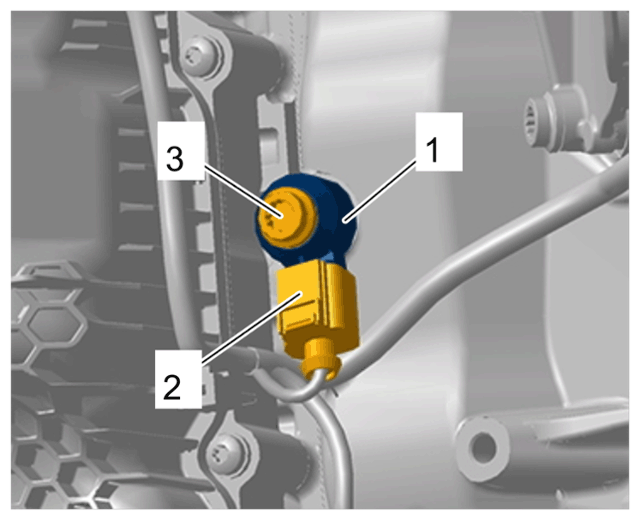

Knock sensor behind engine support
