Installing Hall-Sender Rotor

WARNING: This page is about a different variant/trim than selected.

Information

Check the new hall-sender rotor before installing it.
The hall-sender rotor must not come into contact with a magnet.
If the hall-sender rotor comes close to a magnet, replace it.

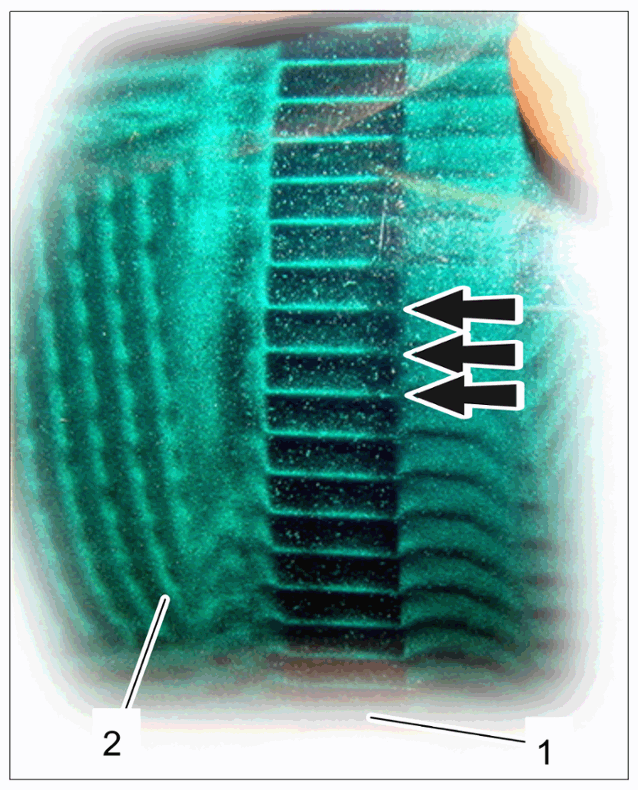

Check condition of hall-sender rotor -1- using > T10473 - test card-2- .
1. 1.1 > T10473 - Test card-2- must be held over the hall-sender rotor -1- . Then turn it.
2. 1.2 An undamaged hall-sender rotor -1- will have clearly visible continuous stripes -Arrows- . Result: Hall-sender rotor -1- OK!
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Undamaged hall-sender rotor

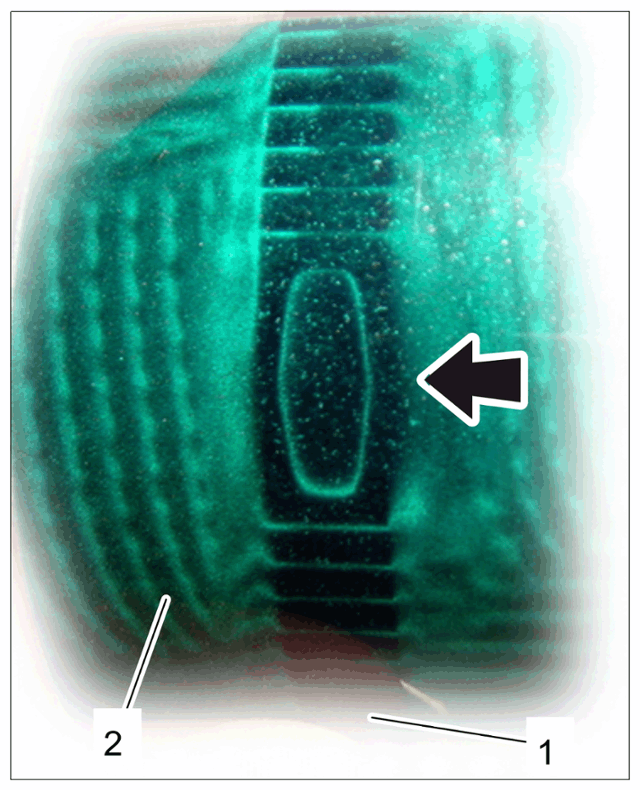

Check "TDC marking" -arrow- using > T10473 - test card -2- .
1. 2.1 > T10473 - Test card-2- must be held over the hall-sender rotor -1- . Then turn it.
2. 2.2 An undamaged hall-sender rotor -1- will have a clearly visible "TDC marking" -arrow- . Result: Hall-sender rotor -1- OK!
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Undamaged "TDC marking"
If the hall-sender rotor is damaged:
Replace hall-sender rotor.

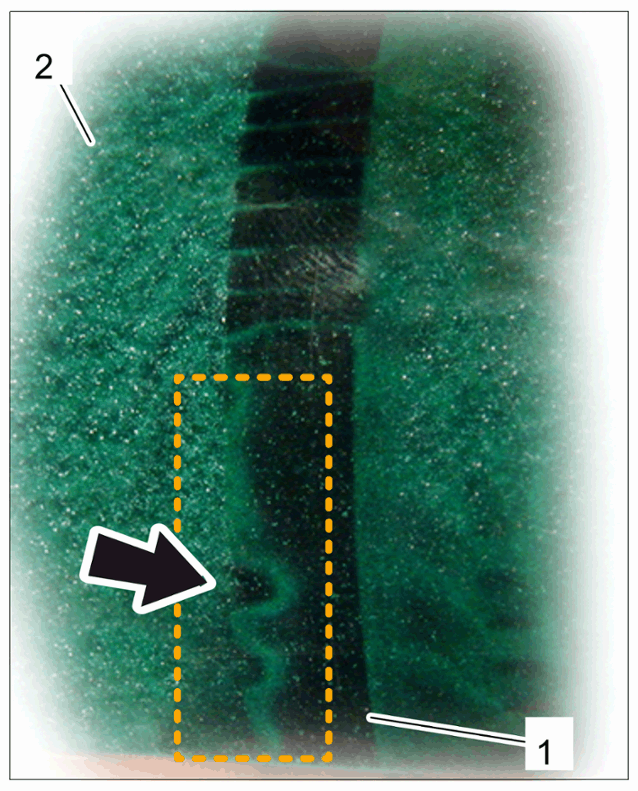

1. 3.1 If the hall-sender rotor -1- is damaged, the stripes -arrow- will not be visible.
Result: Hall-sender rotor -1- not - OK - replace it!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damaged hall-sender rotor
