Removing Camshaft Sensor (Outlet Camshafts)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
  1. → Let hot components cool down
  2. → Wear personal protective gear.
  1. Remove camshaft sensor -1-  .
    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew screw -3-  .
      1. 1.2.1  At the camshaft sensor of the exhaust camshaft cylinder bank 2, the thermal insulation must also be lifted.
    3. 1.3  Remove camshaft sensor -1-  .

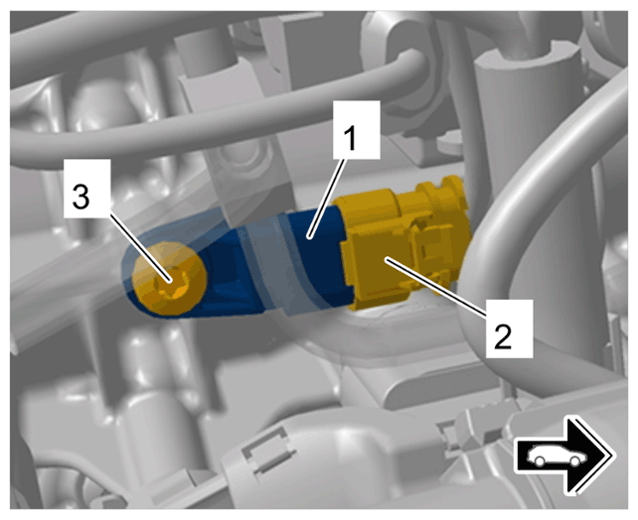

G15152185Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Camshaft sensor for outlet camshafts
