Removing Ignition Coils (Left Cylinder Bank)

Information

• Before doing any other work, the ignition must be switched off and the remote control (hand-held transmitter) must be kept outside of the transmission range (at least 2 m).

1. Loosen cable duct for engine wire harness -1-  .
   1. 1.1  Release and disconnect cable plug -2-  .
   2. 1.2  Release locking lug -3-  , pull off cable duct -1-  by pulling it up and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable duct for engine wire harness, left

2. Remove ignition coils -1-  .
   1. 2.1  Unscrew screws on ignition coils -2-  .
   2. 2.2  Pull off ignition coils -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

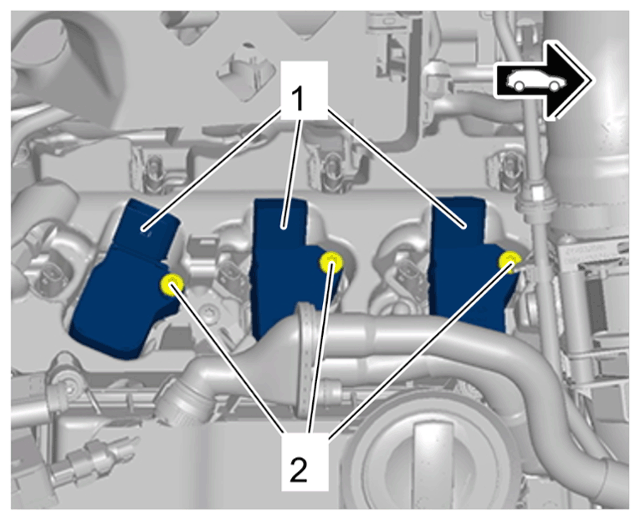

   Ignition coils on left cylinder bank
