Installing Ignition Coils (Left Cylinder Bank]

1. 1.1  Insert ignition coils -1-  .
2. 1.2  Screw in and tighten screws on ignition coils -2-  .
   • Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ignition coils on left cylinder bank

1. 2.1  Push cable duct -1-  onto holder until the locking lug -3-  locks.
2. 2.2  Connect and lock cable plug -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

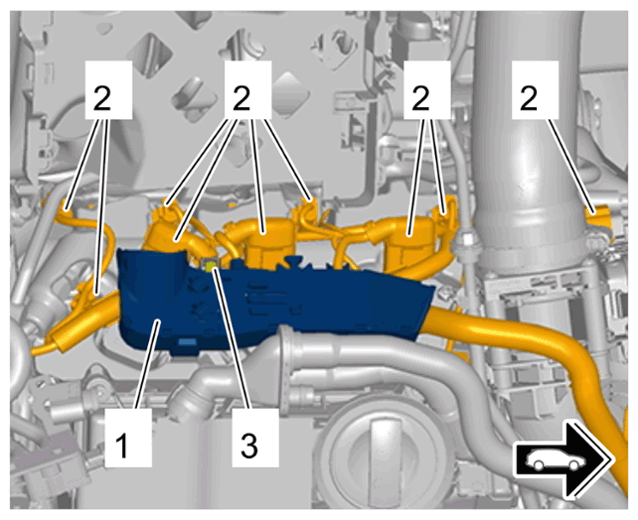

Cable duct for engine wire harness, left
