Replacing Sealing Ring For Rear Transfer Box
WARNING: This page is about a different variant/trim than selected.
- Remove sealing ring for rear transfer box -1-
using >
VAS 6965 - puller set
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

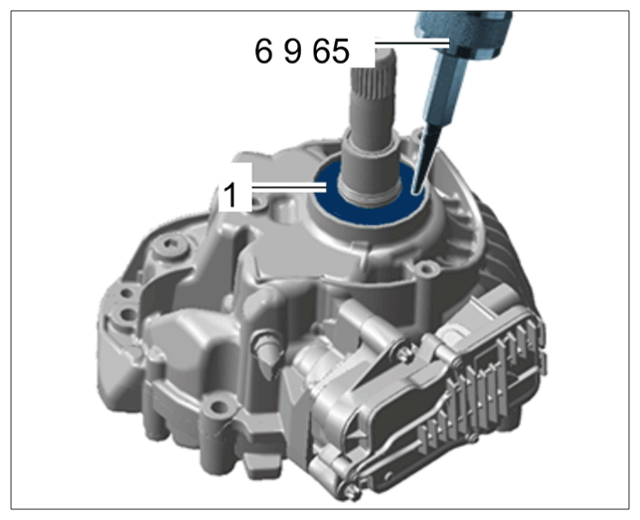

Removing sealing ring for rear transfer gear
- Clean the sealing face.
- Install new sealing ring for rear transfer box. > Installing sealing ring for rear transfer gear
- 3.1
Tap in sealing ring for rear transfer box evenly using > 9881 - pressure piece
and a plastic hammer.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

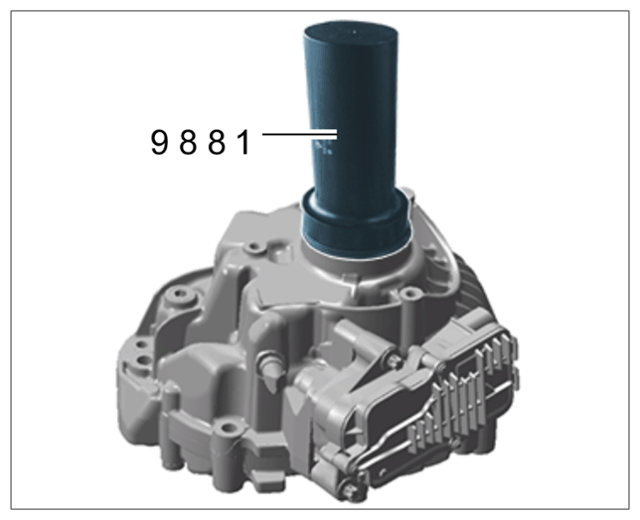

Installing sealing ring for rear transfer gear
