Draining Oil For All-Wheel Final Drive (Transmission Oil]

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

Information

The transmission/final drive must be stopped for at least 15 minutes to allow for internal oil level adjustment.

  1. Drain oil for all-wheel final drive.
    1. 1.1  Unscrew inspection plug and filler screw -3-  .
    2. 1.2  Unscrew drain plug -5-  .
    3. 1.3  Collect emerging oil in a suitable container,
    4. 1.4  Tighten drain plug

      > Tightening - torque 60 Nm (44 ftlb.)

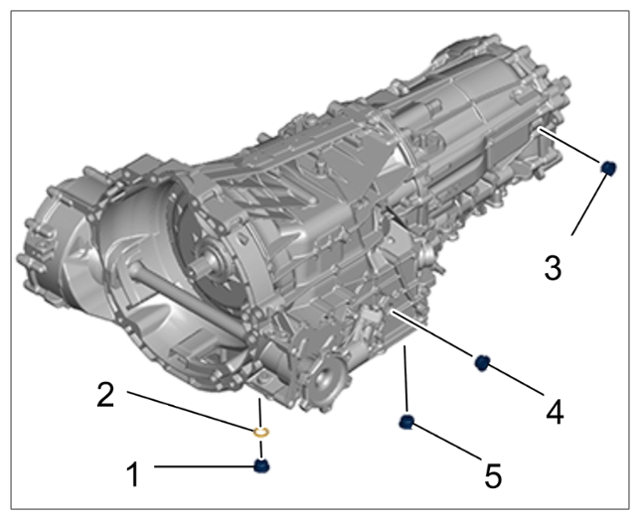

      G15153491Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Overview of screw plugs
