Installing Rubber Mounting For Rear Final Drive

WARNING: This page is about a different variant/trim than selected.
  1. Insert new  rubber mounting for rear final drive -1-

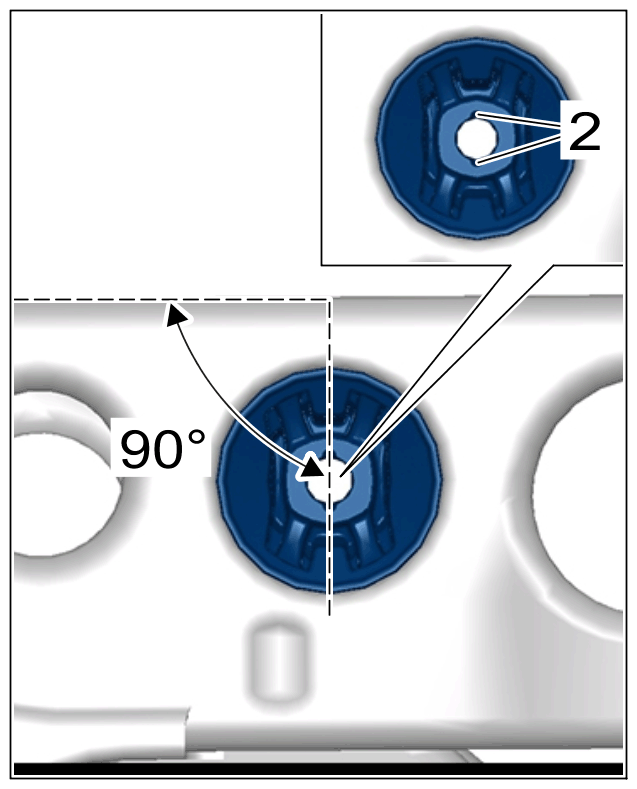

    1. 1.1  Insert rubber mounting for rear final drive into the rear axle housing in such a way that the grooves -2-  are attain angle of 90° with respect to the upper edge of the rear axle housing
      G15153470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rubber mounting for rear final drive

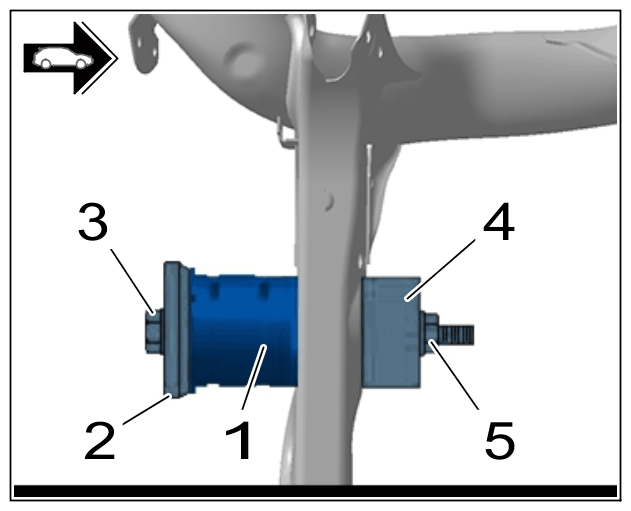

  2. Press in rubber mounting for rear final drive -1-  .
    1. 2.1  Fit T40033/5-plate -2-  on rubber mounting for rear final drive -1-  .
    2. 2.2  Guide T40032/5 - spindle -3- through - T40033/5 - plate -2-  and rubber mounting for rear final drive -1-  .
    3. 2.3  Fit T40032/7-pressure piece -4-  and screw on nut -5-  .
    4. 2.4  Turn nut clockwise to press rubber mounting for rear final drive into rear axle housing
    5. 2.5  Press rubber mounting for rear final drive as far as it will go into rear axle housing
      G15153471Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      T40032 and T40033 assembly tool

  3. Remove special tools.
