Removing Right Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.
  1. Remove right halfshaft flange -1-  .

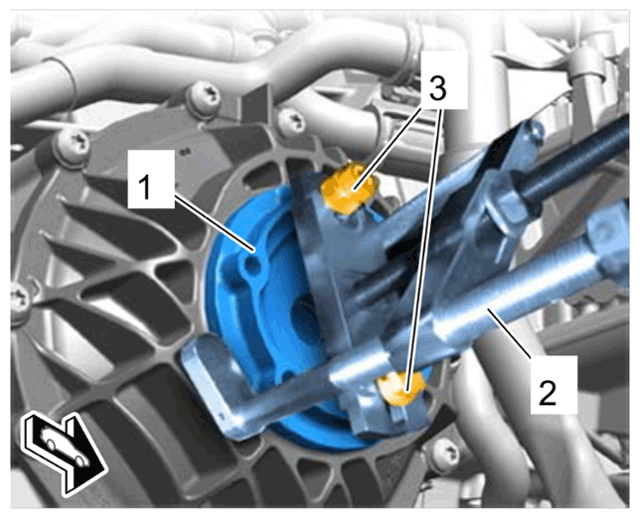

    G15153413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Halfshaft flange with puller (similar to illustration)

    1. 1.1  > T10037 - Puller -2-  must be positioned on right halfshaft flange -1-  Then screw in screws -3-  .
    2. 1.2  Pull off right halfshaft flange -1-  using > T10037 - puller -2-
  2. Clean the halfshaft flange and set it down on a clean surface.
  3. Replace circlip -1-  .

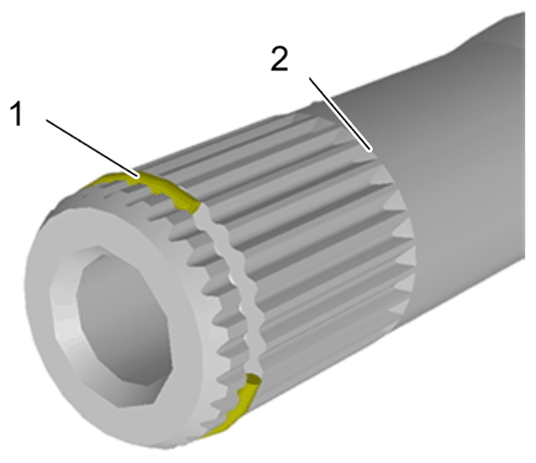

    G15153414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Circlip

    1. 3.1  Clamp the halfshaft flange -2-  in a vice with protective jaws.
    2. 3.2  Remove the circlip -1-  and fit a new  circlip -1-  .
