Removing Left Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.
  1. Remove left halfshaft flange -1-  .

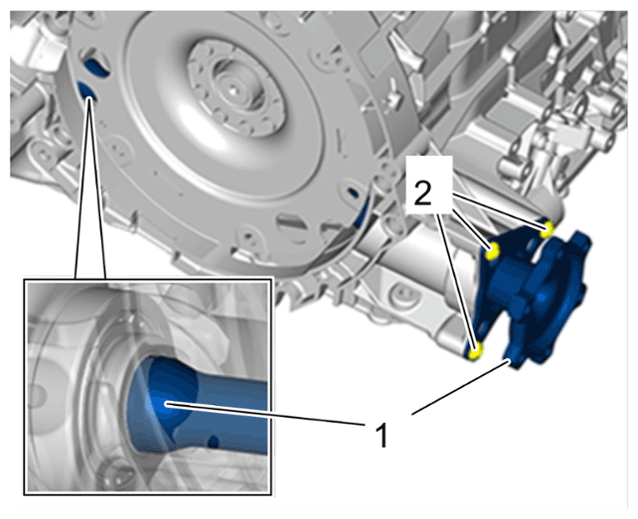

    G15153411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left halfshaft flange

    1. 1.1  Unscrew screws -2-  .
      1. 1.1.1  Replace screws.
    2. 1.2  Guide left halfshaft flange -2-  slowly and carefully out of the transmission.
  2. Clean the halfshaft flange and set it down on a clean surface.
  3. Remove drive plate.

    > 136319 - REMOVING AND INSTALLING DRIVE PLATE

  4. Clean sealing ring on front left halfshaft flange and transmission housing in the area leading to the differential.

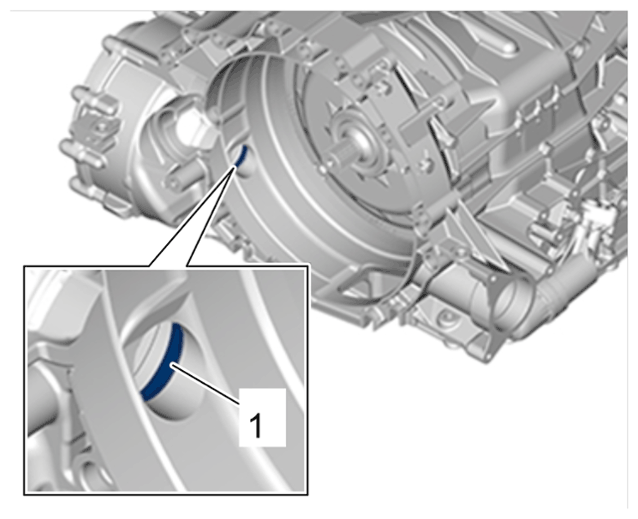

    G15153412Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring for front left halfshaft flange
