Installing Right Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.
  1. Check sealing ring cn front right halfshaft flange -1-  for damage.

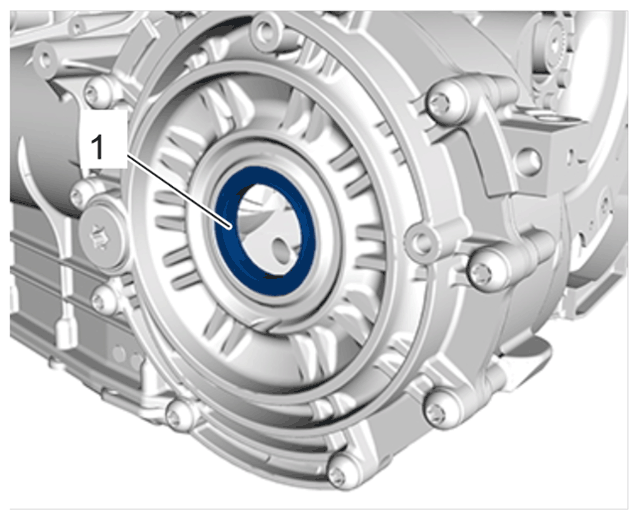

    G15153417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring on front right halfshaft flange

    1. 1.1  If the sealing ring is damaged, replace the sealing ring on the front right halfshaft flange

      > 395955 - REPLACING SEALING RING FOR FRONT HALFSHAFT FLANGE

    2. 1.2  Half-fill the space between the sealing and dust lips with sealing grease.
  2. Install right halfshaft flange -1-  .

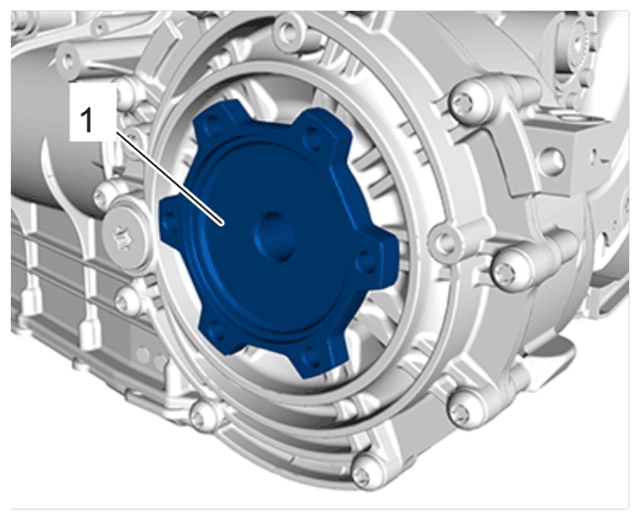

    G15153418Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right halfshaft flange

    1. 2.1  Carefully guide in right halfshaft flange -1-  .
    2. 2.2  Tap in right halfshaft flange using > VW295 - drift  .
