Installing Left Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.
  1. Check sealing ring for front left halfshaft flange -1-  for damage.

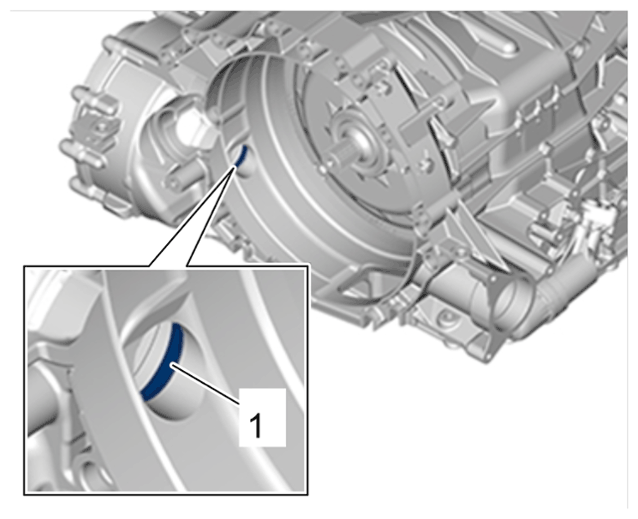

    G15153415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring for front left halfshaft flange

    1. 1.1  If the sealing ring is damaged, replace the sealing ring for the front left halfshaft flange -1-  .

      > 395955 - REPLACING SEALING RING FOR FRONT HALFSHAFT FLANGE

    2. 1.2  Half-fill the space between the sealing and dust lips with sealing grease.
  2. Install drive plate.

    > 136319 - REMOVING AND INSTALLING DRIVE PLATE

  3. Install the left halfshaft flange -1-  .

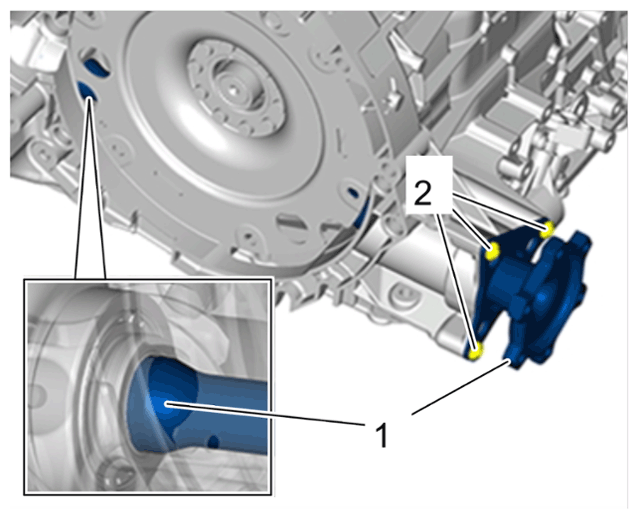

    G15153416Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left halfshaft flange

    1. 3.1  Turn the drive plate until the opening fer the differential is visible,
    2. 3.2  Carefully insert the left halfshaft flange -1-  into the sealing ring as far as the step.
    3. 3.3  Fit and tighten new  screws -2-  .

      > Initial - tightening 15 Nm (11 ftlb.)

      > Final tightening + 45°
