Removing Rear Final Drive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

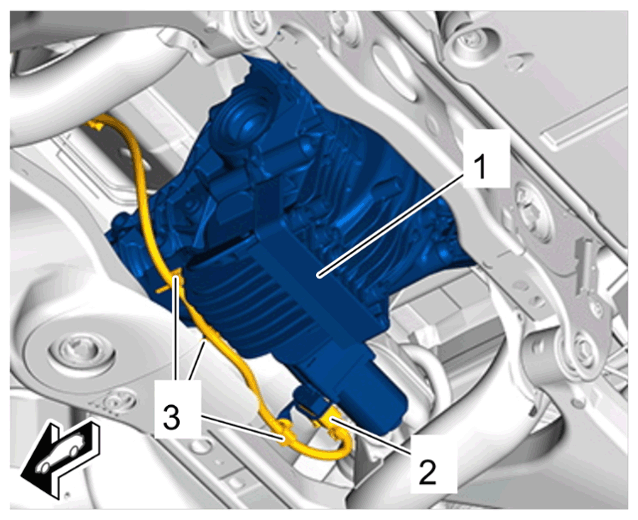

Electric line for servo motor for rear-differential lock

1. 1.1  Release and detach the cable plug -2-
2. 1.2  Unclip clips -3-

   Information

   You will need a second mechanic to help you with this step.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

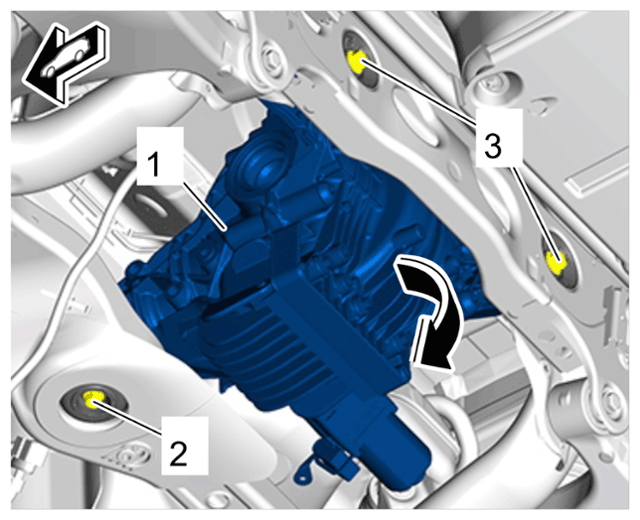

Rear final drive

Information

Always use an intermediate layer (e.g. hard rubber) when using the jack!

1. 2.1  > VAS 6931 - Engine and gearbox jack  must be pesitigned under the final drive using a suitable support.
2. 2.2  Carefully support the final drive using > VAS 6931 - engine and gearbox jack  .
3. 2.3  Remove screws -2-  and -3-  .
4. 2.4  Turn down the rear final drive -Arrow- and guide it out. Get another person to help guide the final drive out of the vehicle.
