Installing Rear Final Drive
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1
Replace screw -2-
- 1.2
Tighten the screws
> Tightening - torque 95 Nm (70 ftlb.)
- 1.3
Tighten screw
> Initial - tightening 40 Nm (30 ftlb.)
> Final tightening + 90°
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

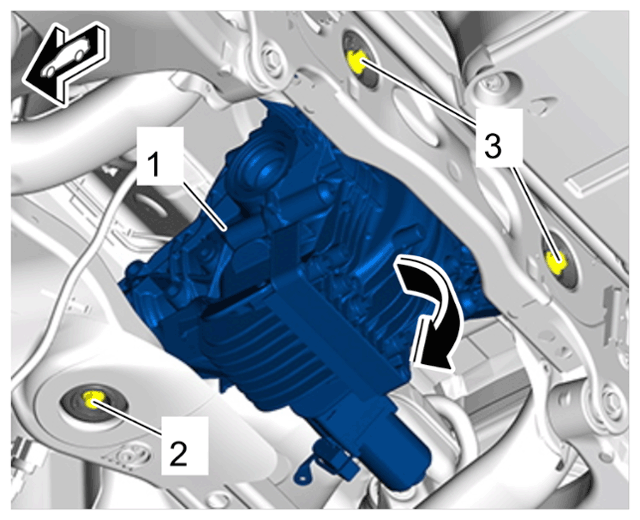

Rear final drive
