Removing Catalytic Converter

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Loosen the front silencer -1-  on the catalytic converter.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

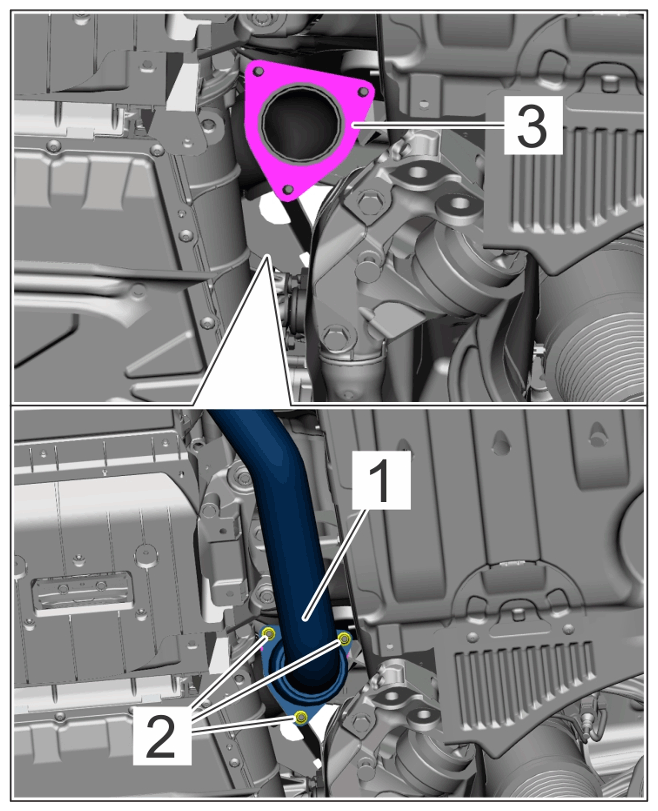

   Catalytic converter flange

   1. 1.1  Unscrew nuts -2-  .
   2. 1.2  Pull front silencer -1-  down.
   3. 1.3  Replace seal -3-  and nuts -1-  .
2. Remove catalytic converter -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

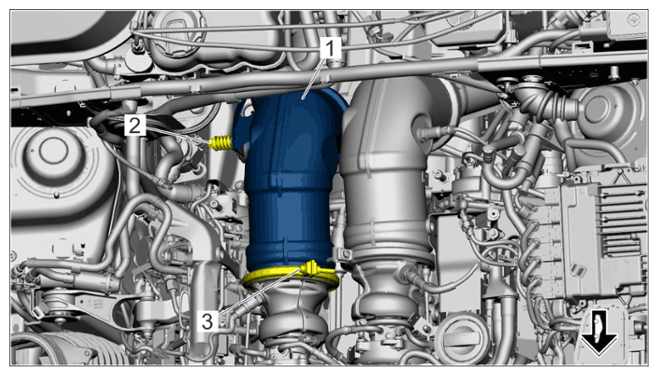

   Catalytic converter

   1. 2.1  Unscrew screw on spring/tab assembly -2-  .
   2. 2.2  Loosen V-band clamp -3-  .
   3. 2.3  Remove catalytic converter -1-  and guide out of the engine compartment.
   4. 2.4  Replace V-band clamp -3-  .
3. Replace seal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

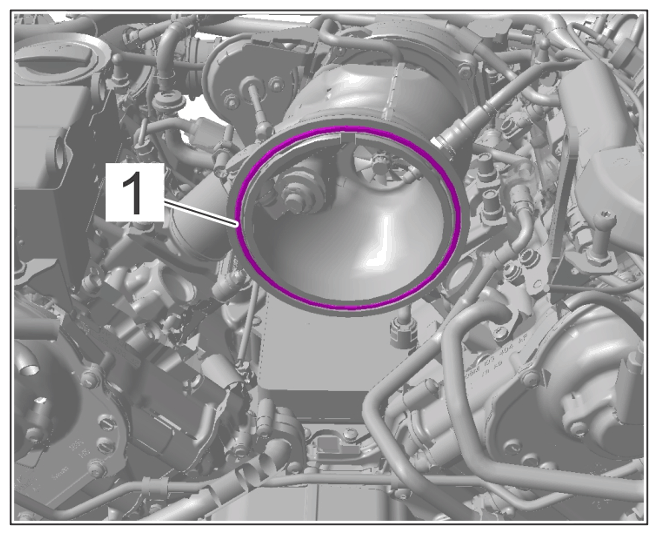

   Seal for particle filter on turbocharger (shown on V6 monoturbo)
