Removing Exhaust Flap Actuator

WARNING: This page is about a different variant/trim than selected.
  1. Remove exhaust flap actuator -1-  .
    1. 1.1  Release and disconnect cable plug -2-  .
    2. 1.2  Unscrew screws -3-  .
    3. 1.3  Remove exhaust flap actuator -1-  by pulling it upwards -Arrow-  .

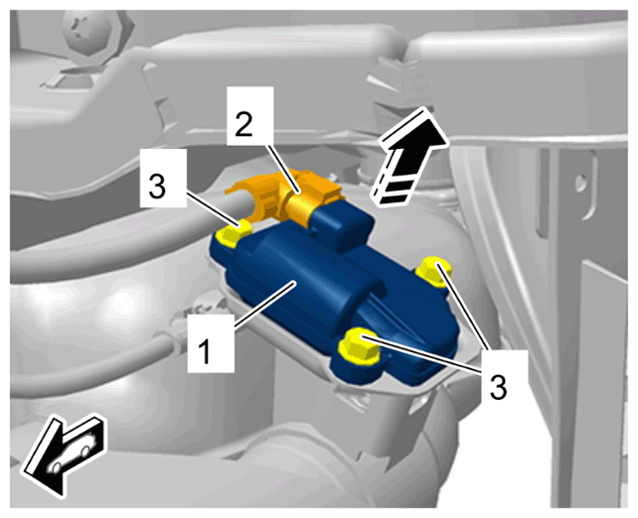

      G15152075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Exhaust flap actuator
