Removing Differential-Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

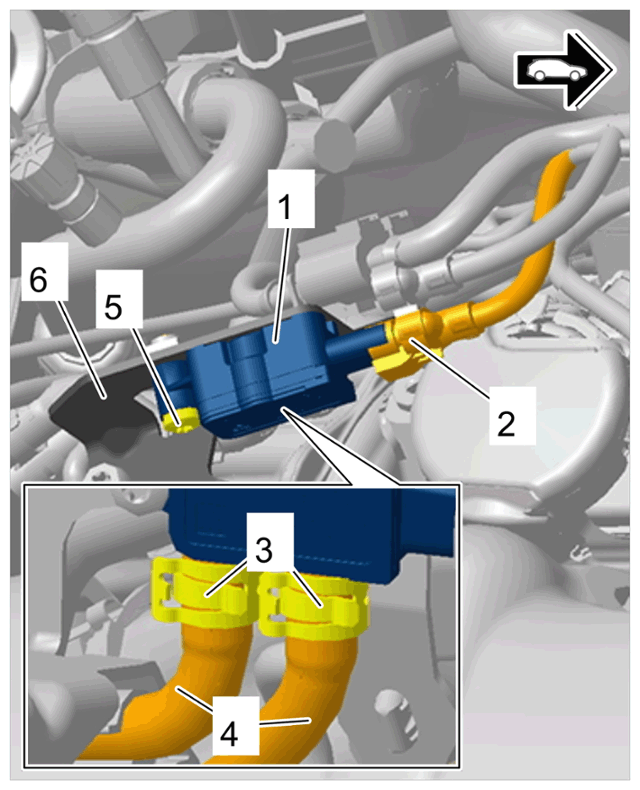

- Remove differential pressure sensor -1-
.
- 1.1
Release and disconnect cable plug -2-
.
- 1.2
Loosen spring band clamps -3-
using >
VAS 6890 - spring band clamp pliers
and disconnect hoses -4-
.
- 1.3
Unscrew screw -5-
and remove differential pressure sensor from holder -6-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Differential pressure sensor
