Removing Heat Shield On Tunnel Centre

WARNING: This page is about a different variant/trim than selected.

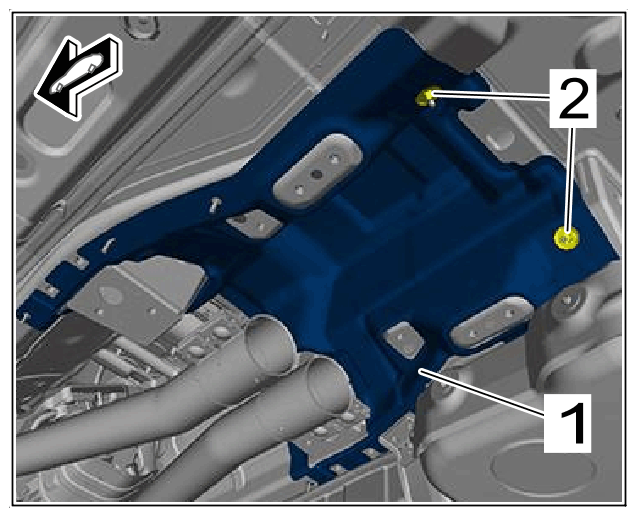

  1. Unscrew nuts -2-  and remove heat shield tunnel centre -1-  .
    G15152058Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on tunnel, centre
