Removing Heat Shield On Firewall Upper Section

WARNING: This page is about a different variant/trim than selected.

For V6 Turbo engine:
Unscrew nuts -2- and remove heat shield for firewall lower section -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

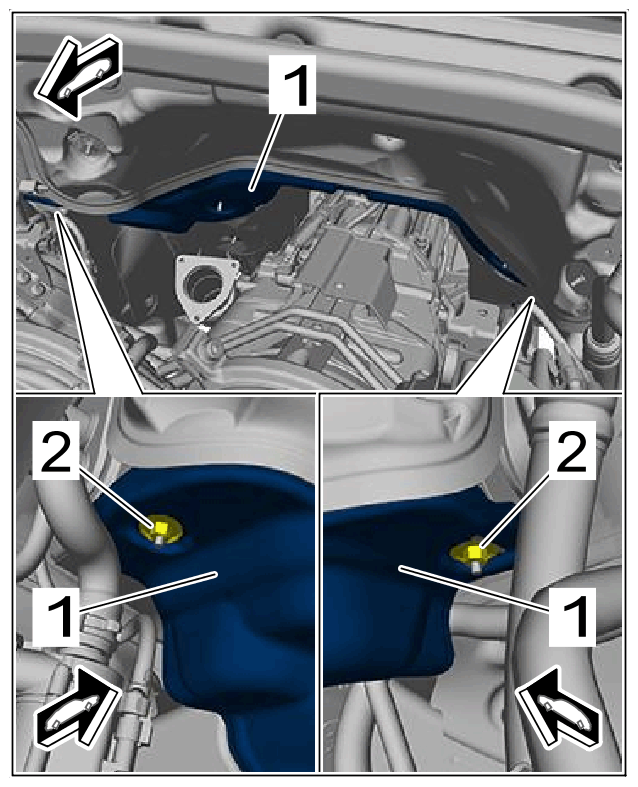

Heat shield on firewall lower section
1. 1.1 For R4:
  Unscrew upper nuts only -2- as there is no heat shield on firewall lower section -1-
Unscrew nuts -2- and remove heat shield for firewall upper section -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

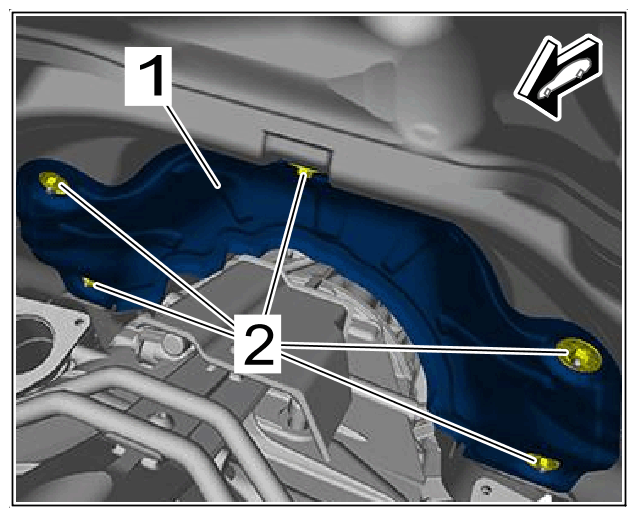

Heat shield on firewall upper section
