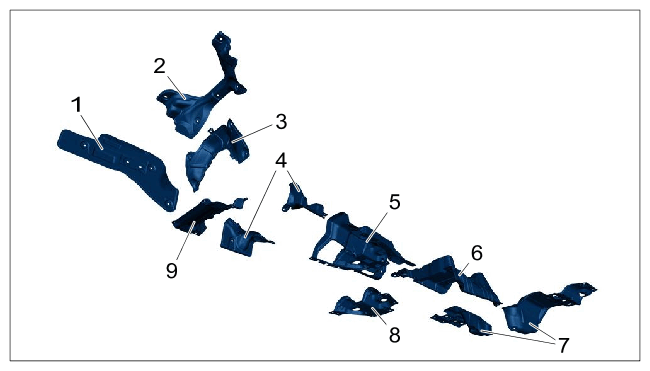

Fig 1: Heat Shields Component Location
G15152049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component information for heat shields

  1. Heat shield on right longitudinal member (R4)
  2. Heat shield on firewall upper section
  3. Heat shield on firewall lower section (V6 turbo)
  4. Heat shields left and right (V6 turbo)
  5. Heat shield on tunnel, centre
  6. Heat shield centre
  7. Heat shields for rear muffler
  8. Heat shield on cardan shaft centre bearing
  9. Heat shield on lower heat shield (V6 turbo)
