Removing Pressure Pipe (From Turbocharger To Charge-Air Cooler)

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect pressure pipe -1-  at the turbocharger.

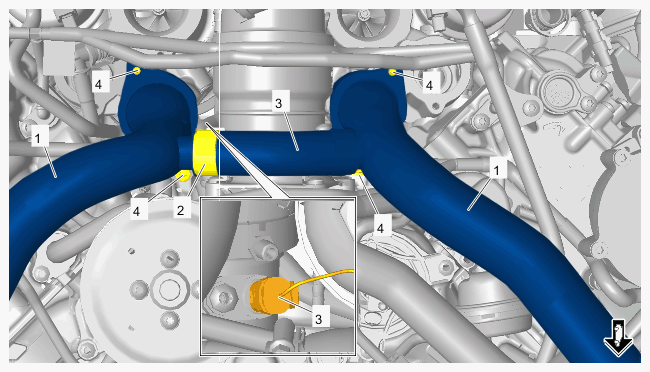

    G15151903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe on turbocharger

    1. 1.1  Loosen screw-type clamp on connecting hose -2-  .
    2. 1.2 Only for right pressure pipe:

      Release and disconnect electric plug connection on boost pressure sensor -3-  .

    3. 1.3  Unscrew screws for pressure pipe -4-  .
  2. Remove pressure pipes -1-  on both sides.

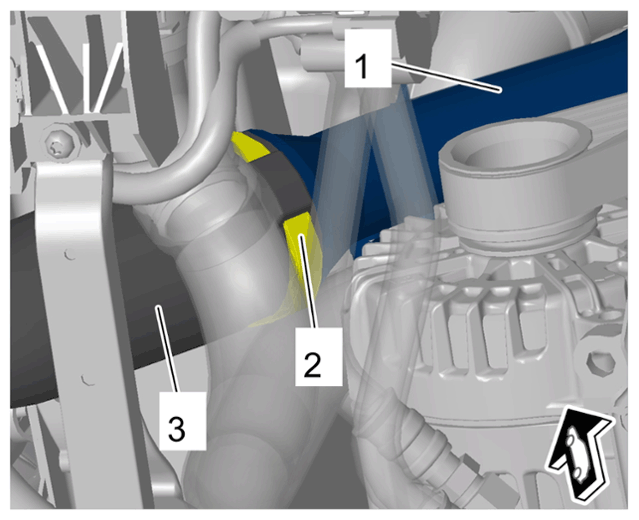

    G15151904Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe

    1. 2.1  Loosen screw-type clamp -2-  .
    2. 2.2  Pull pressure pipe -1-  off pressure hose -3-  .
    3. 2.3  Guide pressure pipe -1-  down out of the vehicle.
    4. 2.4  Repeat the procedure for the other side.
