Removing Pressure Pipe (From Charge-Air Cooler To Charge-Air Cooler)

WARNING: This page is about a different variant/trim than selected.
  1. Remove pressure pipe -1-  .

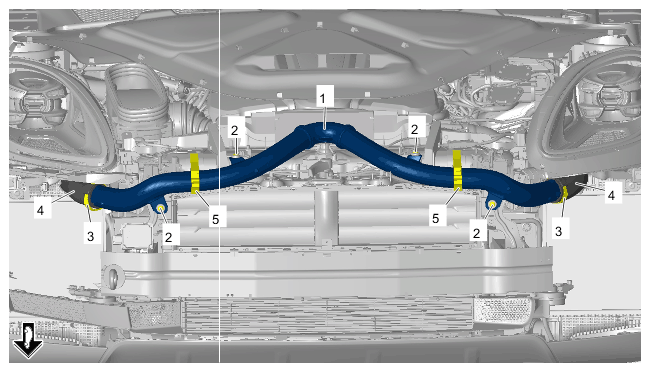

    G15151905Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe (from charge-air cooler to charge-air cooler)

    1. 1.1  Unscrew screws for pressure pipe -2-  .
    2. 1.2  Loosen screw-type clamps -3-  and pull pressure pipe -1-  out of the pressure hoses -4-  .
    3. 1.3  Detach rubber holder -5-  and remove pressure pipe -1-  by pulling it forward.
