Installing Pressure Pipe (From Charge-Air Cooler To Charge-Air Cooler)

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order. Pay particular attention to the following:
    1. 1.1  Tighten screws for pressure pipe -2-  .
      • Tightening torque 8 Nm (5.9 ftlb.)
    2. 1.2  Tighten screw-type clamps on pressure pipe -3-  .
      • Tightening torque 5.5 Nm (4.1 ftlb.)

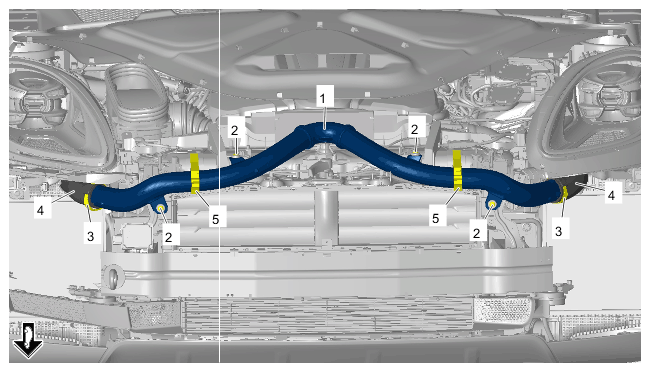

    G15151909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe (from charge-air cooler to charge-air cooler)
