Removing Recirculating Air Valve (V6 Monoturbo)
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.
- Press vacuum hoses -1-
aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

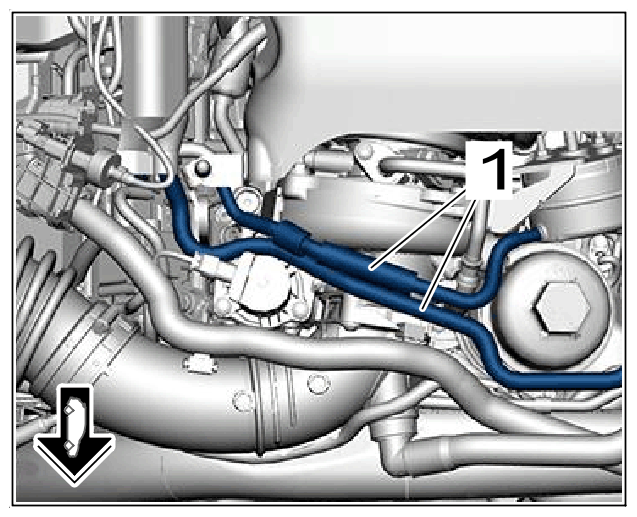

Hoses
- Remove recirculating air valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

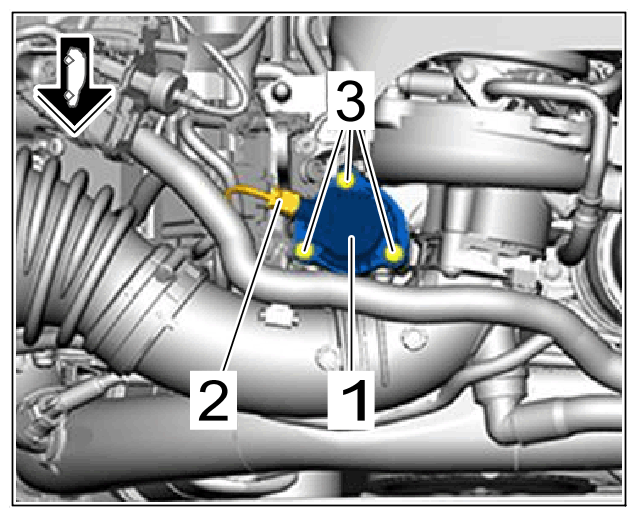

Recirculating air valve - V6 monoturbo
- 1.1
Release and disconnect electric plug connection recirculating air valve -2-
.
- 1.2
Thread off screws -3-
, remove recirculating air valve -1-
and guide it out.
