Removing Recirculating Air Valve (V6 Biturbo)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Remove recirculating air valve -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

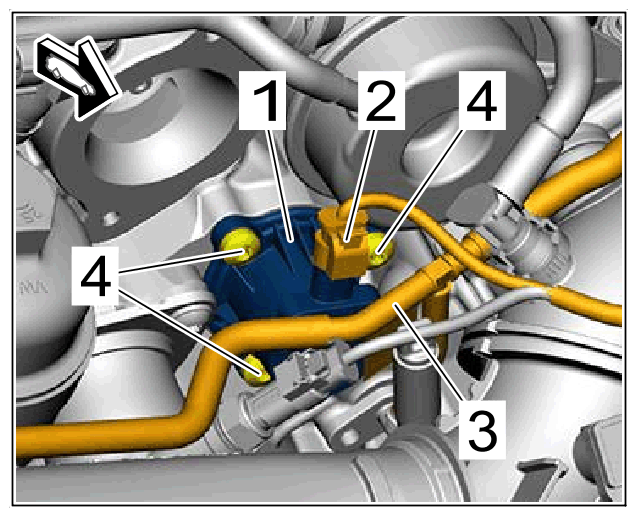

Recirculating air valve - V6 biturbo
1. 1.1 Release and disconnect electric plug connection recirculating air valve -2- .
2. 1.2 Press vacuum hose -3- aside.
3. 1.3 Unscrew the screws -4- , remove the recirculation valve -1- and lead it out.
