Installing Recirculating Air Valve (V6 Monoturbo)

WARNING: This page is about a different variant/trim than selected.

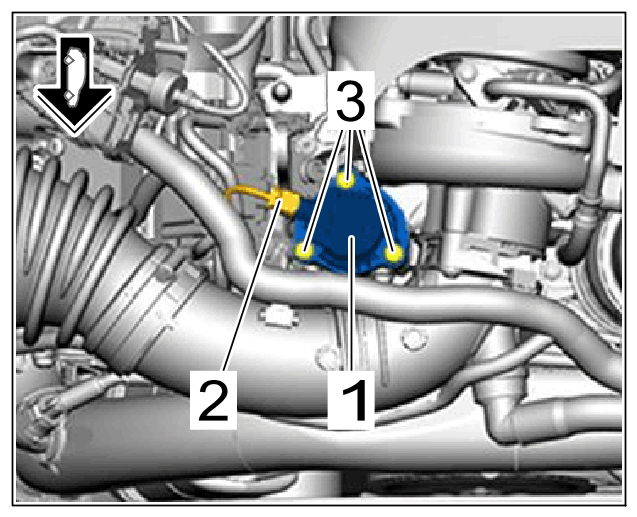

Install recirculating air valve -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Recirculating air valve V6 monoturbo
1. 1.1 Replace sealing ring on recirculating air valve.
2. 1.2 Place recirculating air valve -1- with new sealing ring in installation position.
3. 1.3 Screw in and tighten screws -2- .
  - Tightening torque 9 Nm (6.5 ftlb.)

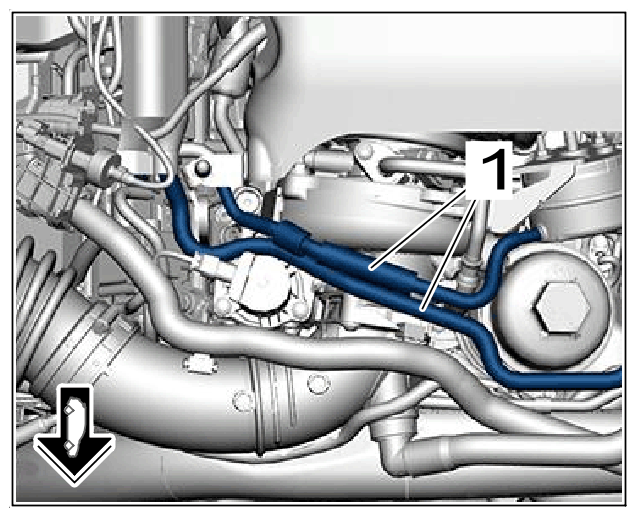

Position hoses -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hoses
