Removing Lower Left Molded Hose
WARNING: This page is about a different variant/trim than selected.
- Remove -1-
molded hose.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

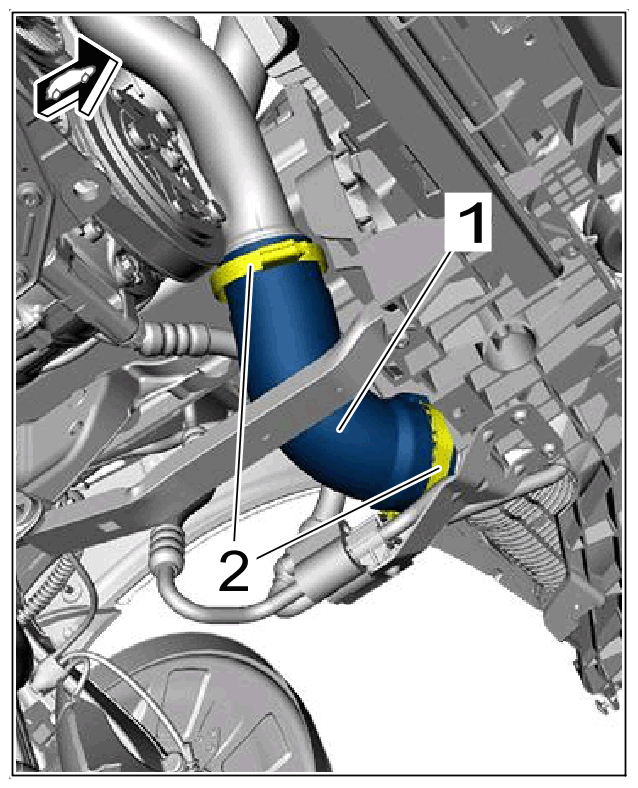

Lower left molded hose
- 1.1
Loosen screw-type -2-
clamps.
- 1.2
Pull off molded hose -1-
, guide out and close off line connections using suitable stoppers.
- 1.3
Collect emerging oil.
