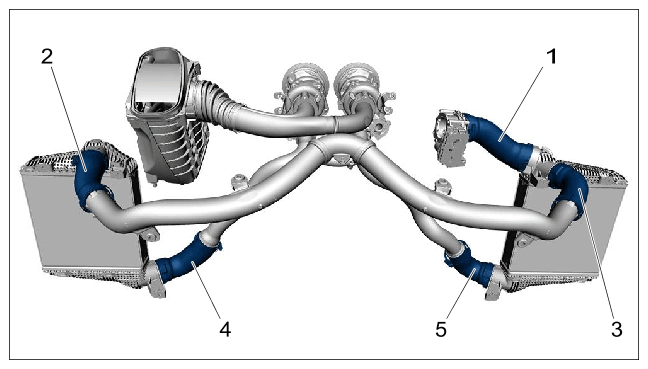

Fig 1: Molded Hose Component Location (V6 Biturbo)

G15151888

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component information

Top left (left charge-air cooler output - throttle valve)
Top right (charge-air cooler right outlet - pressure pipe)
Top left (charge-air cooler, left, inlet - pressure pipe)
Bottom right (charge-air cooler right inlet - pressure pipe)
Top left (charge-air cooler, left inlet - pressure pipe)
