Removing Turbocharger

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. → Let the fluid cool down.
    2. → Wear personal protective gear.
CAUTION: Hot components
  • Risk of burns

Let hot components cool down.
  1. → Wear personal protective gear.

Information

The procedure for removal is described for one side as an example. The procedure for the other side is practically identical.

  1. Remove vacuum hose -1-  and release and disconnect electric plug connection -2-  .

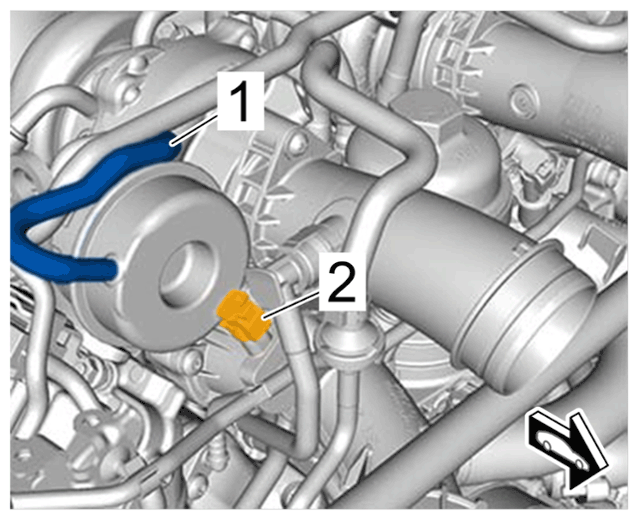

    G15151874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Turbocharger connections

  2. Disconnect oil supply line -1-  .

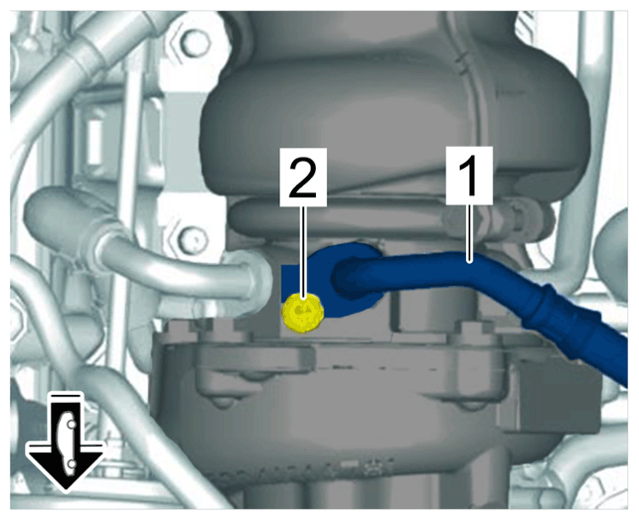

    G15151875Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil supply line (right turbocharger)

    1. 2.1  Unscrew screw on oil feed line -2-  .
    2. 2.2  Remove oil feed line -1-  .
    3. 2.3  Collect emerging oil using suitable aids and close off line connections using suitable stoppers.
  3. Disconnect coolant lines -1 and 2-  on the turbocharger.

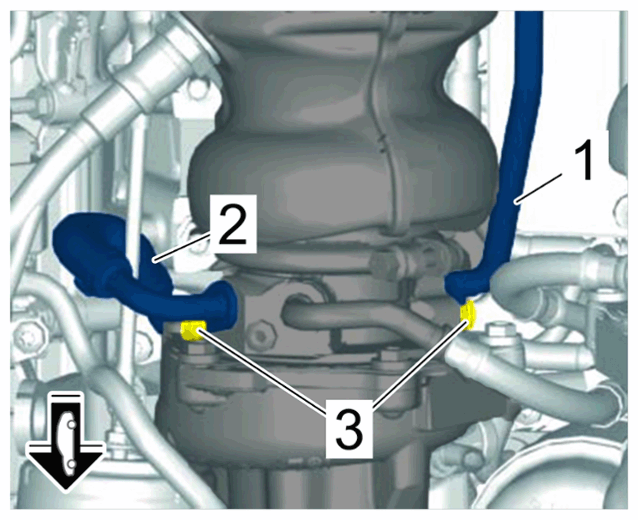

    G15151876Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant lines on turbocharger (right)

    1. 3.1  Unscrew screws -3-  .
    2. 3.2  Disconnect coolant return line -1-  .
    3. 3.3  Disconnect coolant supply line -2-  .
    4. 3.4  Collect emerging coolant using suitable aids and close off line connections using suitable stoppers.
  4. Loosen V-band clamp -1-  .

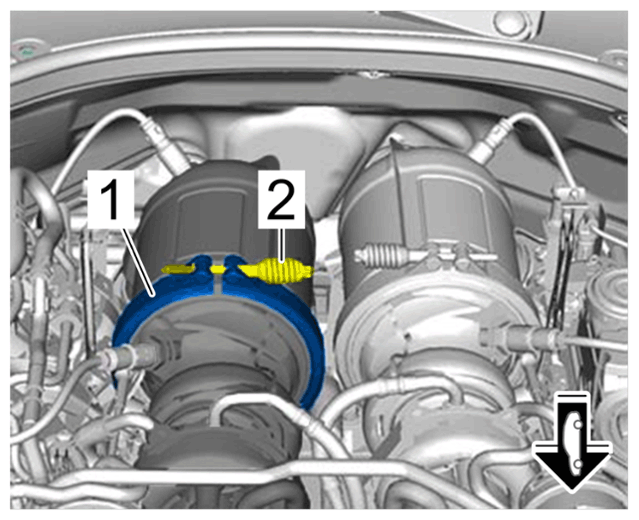

    G15151877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    V-band clamp on turbocharger/catalytic converter flange (right)

    1. 4.1  Loosen screw -2-  and release V-band clamp -1-  .
    2. 4.2  Carefully loosen V-band clamp -1-  from the turbocharger/catalytic converter flange using a hammer and wedge.
  5. Loosen turbocharger -1-  .

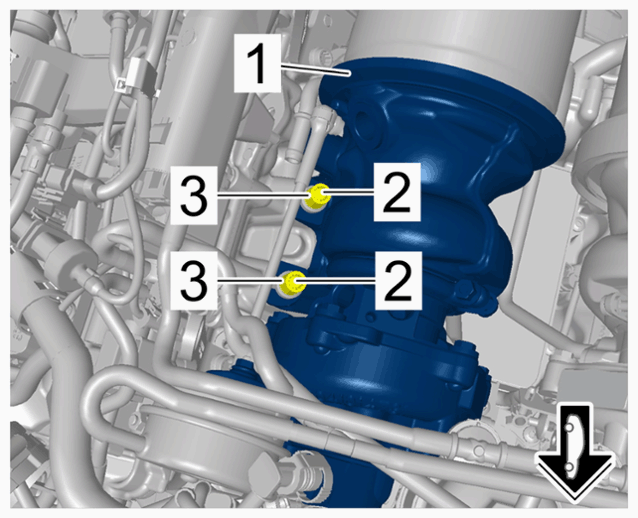

    G15151878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for turbocharger (right)

    1. 5.1  Unscrew nuts and studs -2 and 3-  .

    Information

    When removing the turbocharger, the oil return line will be damaged and must always be replaced following removal.

  6. Remove turbocharger -1-  .

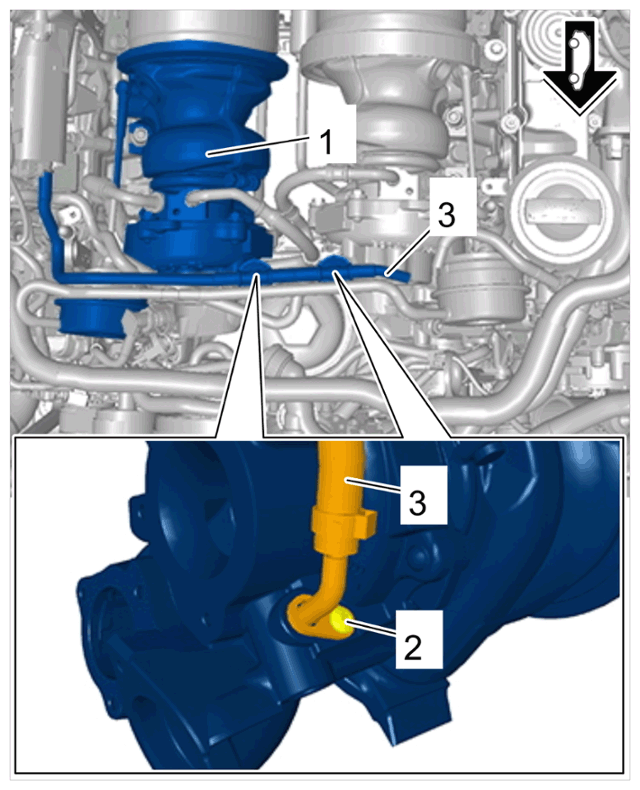

    G15151879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent line on turbocharger

    1. 6.1  Lift up turbocharger -1-  until screw for active carbon filter line -2-  is accessible.
    2. 6.2  Unscrew screw for active carbon filter line -2-  .
    3. 6.3  Remove active carbon filter -3-  and close off line connections using suitable stoppers.
    4. 6.4  Remove turbocharger -1-  together with oil return line.
