Removing Right Intake Pipe

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electric wiring harness -1-  .

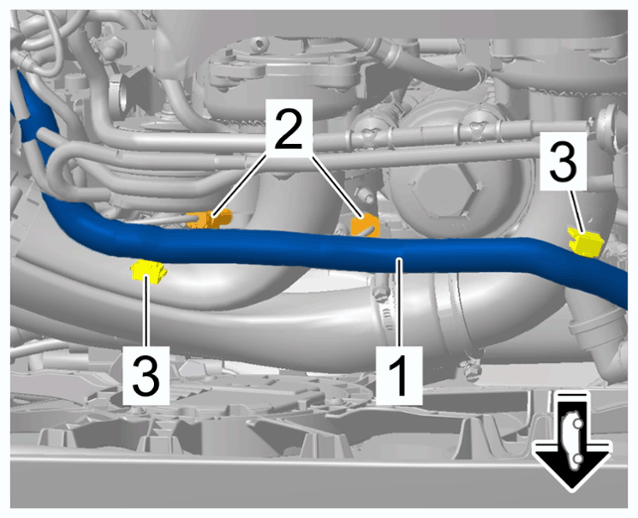

    G15151868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wiring harness

    1. 1.1  Release and disconnect electric plug connections -2-  .
    2. 1.2  Unclip clips -3-  .
  2. Remove right intake pipe -1-  and section of left intake pipe -2-  .

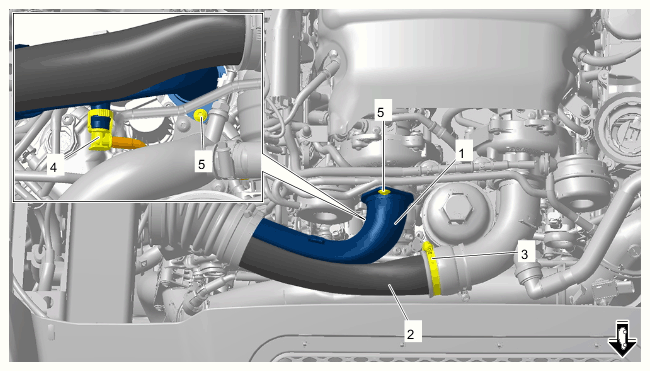

    G15151869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right intake pipe

    1. 2.1  Loosen screw-type clamp -3-  .
    2. 2.2  Release and disconnect plug-in coupling -4-  .
    3. 2.3  Unscrew screws on left intake pipe -5-  .
    4. 2.4  Remove right intake pipe -1-  and section of left intake pipe -2-  .
